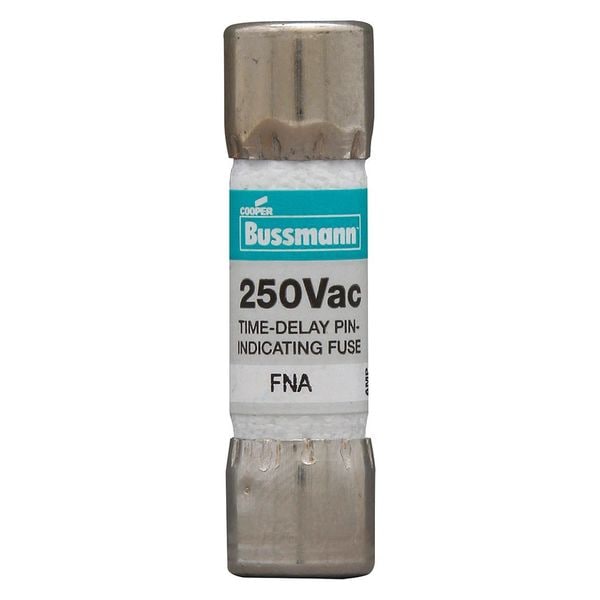

Midget Fuse, FNA Series, Time-Delay, 1A, 250V AC, Indicating, 10kA at 250V AC
| Series | FNA |
|---|---|
| Speed | Time Delay |
| Amps | 1A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Indicating |
| Interrupt Rating | 10kA at 250V AC |
| Body Style | Cylindrical |
| Diameter | 13/32 in |
| Length | 1-1/2 in |
| Body Material | Fiberglass |
| Equivalent Brand and Series | Bussmann FNA, Littelfuse FLA, Mersen GFN |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | BMM |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Fuse Holder Code | D |
| Element | Dual |
| Class | Midget |
| In Line Fuseholder | D |
| Standards | CE, CSA Class 1422-01, UL-248-12 Guide JDYX |
| Functionally Equal To | Littelfuse FLA, Mersen/Ferraz Shawmut GFN |
| Equivalent Series | FLA, FNA, GFN |
| Connection Type | Ferrule End x Ferrule End |
| Weight | 1.5 lb |
| Package Quantity | 1 |
