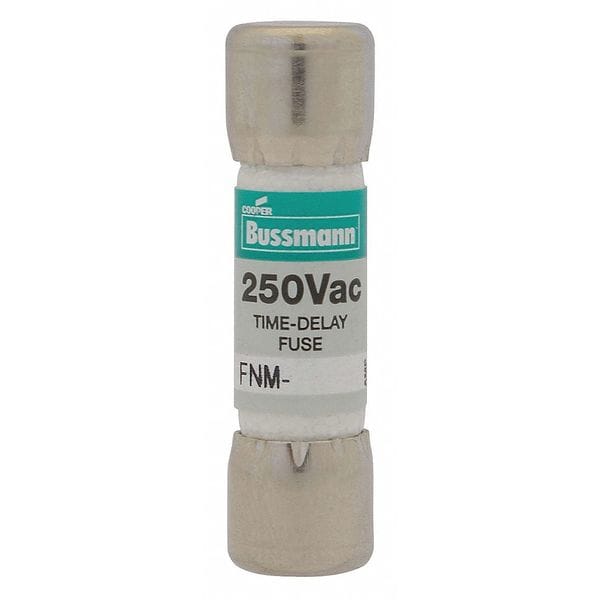

Midget Fuse, FNM Series, Time-Delay, 6.25A, 250V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Series | FNM |
| Speed | Time Delay |
| Amps | 6.25A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125V AC, 200A at 250V AC |
| Body Style | Cylindrical |

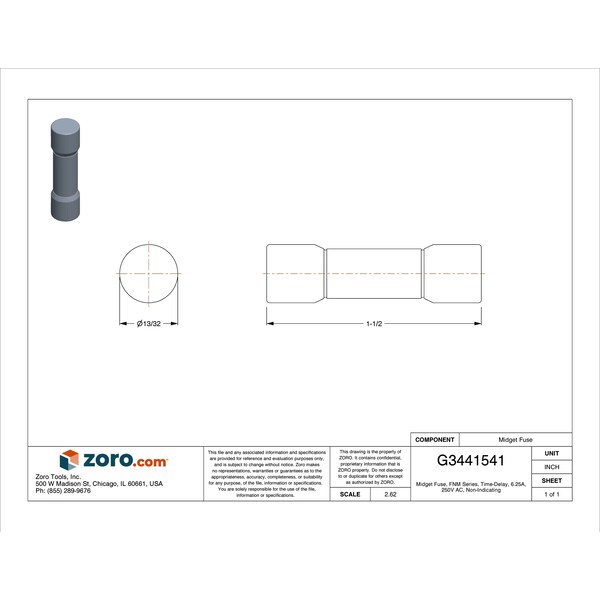

| Diameter | 13/32 in |
| Length | 1-1/2 in |
| Body Material | Fiberglass |
| Equivalent Brand and Series | Bussmann FNM, Littelfuse FLM, Mersen TRM |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | BMM, CHM, C2617, C5268, HEB, HPG, HPS, BM, HEX, OPM-1038, OPM-NG |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Functionally Equal To | Littelfuse FLM, Mersen/Ferraz Shawmut TRM |
| Fuse Holder Code | D |
| Element | Dual |
| Class | Midget |
| In Line Fuseholder | D |
| Standards | CE, CSA Class 1422-01, UL-248-14 Guide JDYX |
| Equivalent Series | FLM, FNM, TRM |
| Package Quantity | 1 |
