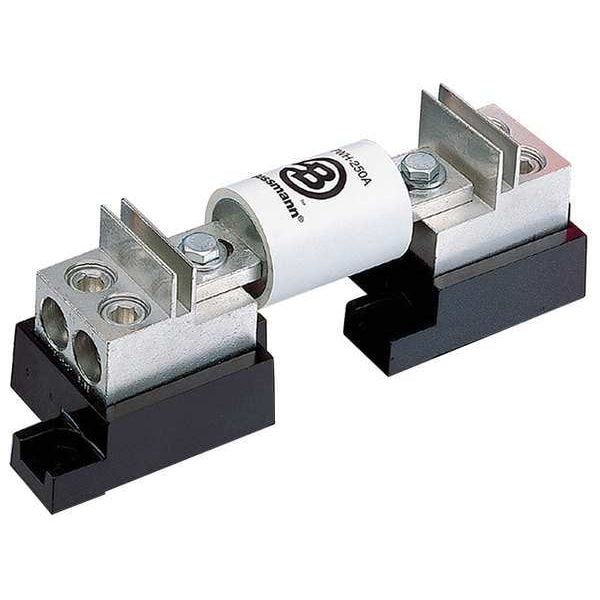

Open Fuse Block, 1 Poles, 401 to 600A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Series | 1BS |
| Number of Poles | 1 |
| Amp Range | 401 to 600A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Wire Range | 4 AWG to 500 MCM |
| Fuse Block Design | Open |
| Body Material | Phenolic |
| Width | 2.86 in |
| Length | 4 in |
| Height | 2.91 in |
| For Fuse Series | FWA, FWH, FWX, KAC, KBC, JJN, JJS, R11C, CGL |
| Fuse Type | High Speed Semiconductor |
| For Fuse Size | Various |
| Fits Fuse Type | Semiconductor |
| Short Circuit Current (KA) | 200 kA |
| Weight | .05 LB |
| Max. Operating Temp. | 150 deg C |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
