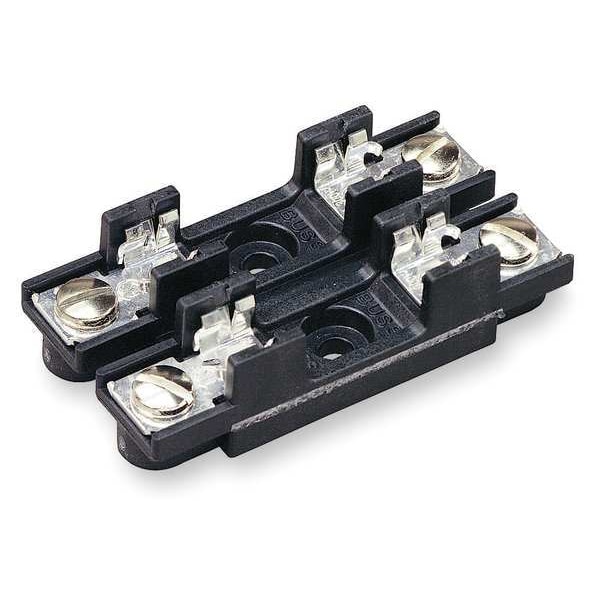

Open Fuse Block, 2 Poles, 0 to 30A Amp Range, 300V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Series | S-8000 |
| Number of Poles | 2 |
| Amp Range | 0 to 30A |
| Voltage Rating | 300V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Wire Range | 22 AWG to 10 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 1-1/8 in |
| Length | 2.19 in |
| Height | 0.56 in |
| For Fuse Series | ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH |
| Fuse Holder Code | G |
| Fuse Type | Ceramic, Glass |
| For Fuse Size | 1-1/4 in L x 1/4 in dia |
| Fits Fuse Type | Glass, Ceramic |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
