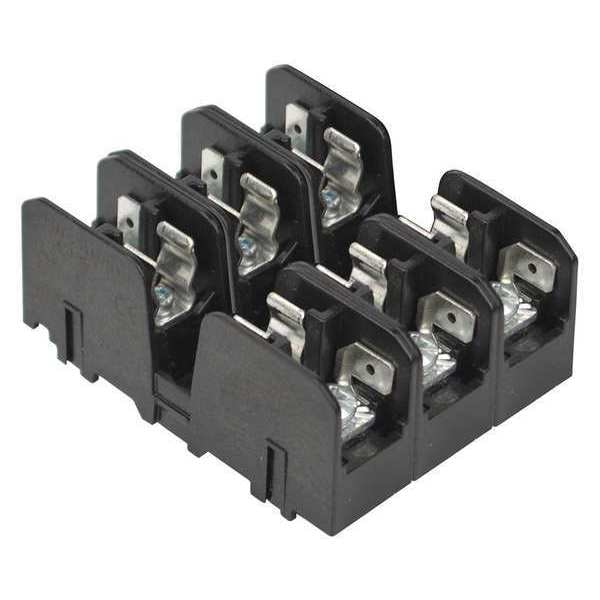

Open Fuse Block, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| Series | BMM |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Quick Connect |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Fuse Type | Midget |
| Length | 3 in |
| Width | 2.4 in |
| Height | 1.3 in |
| For Fuse Series | AGU, BAF, BAN, BBS, FNA, FNM, FNQ, KTK, KLM |
| Standards | CE, CSA Certified, REACH, RoHS, UL Listed |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fits Fuse Type | Midget |
| Wire Range | 18 AWG to 10 AWG |
| Short Circuit Current (KA) | 200 kA |
| Weight | .1 LB |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
