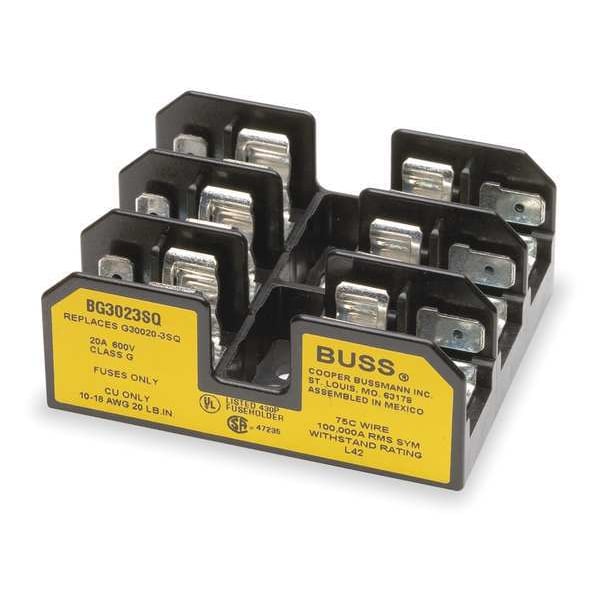

Open Fuse Block, G UL Class, 3 Poles, 20 A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | G |
| Series | BG |
| Number of Poles | 3 |
| Amp Range | 20 A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 10 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 1.63 in |
| Length | 3 in |
| Height | 1.22 in |
| Standards | CE, CSA Certified, rUL |
| Fuse Type | Industrial |
| Fuse Holder Code | AH |
| For Fuse Series | SC |
| For Fuse Size | 1-7/16 in L x 7/16 in dia |
| Fits Fuse Type | Industrial |
| Short Circuit Current (KA) | 100 kA |
| Weight | 0.2 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
