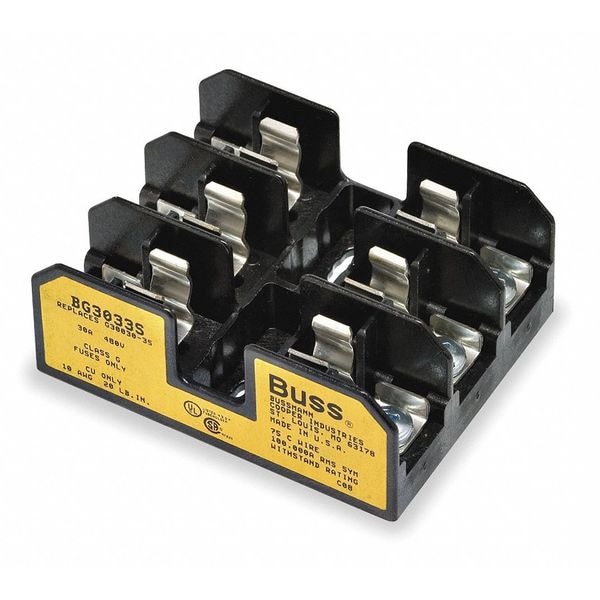

Open Fuse Block, G UL Class, 3 Poles, 25 to 30A Amp Range, 480V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | G |
| Series | BG |
| Number of Poles | 3 |
| Amp Range | 25 to 30A |
| Voltage Rating | 480V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Standards | CSA Certified, rUL |
| Width | 2.38 in |
| Fuse Type | Industrial |
| Length | 3 in |
| Height | 1.22 in |
| Fuse Holder Code | AJ |
| For Fuse Series | SC |
| For Fuse Size | 1-5/8 in L x 7/16 in dia |
| Wire Range | 14 AWG to 10 AWG |
| Fits Fuse Type | Industrial |
| Weight | 0.177 lb |
| Short Circuit Current (KA) | 100 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
