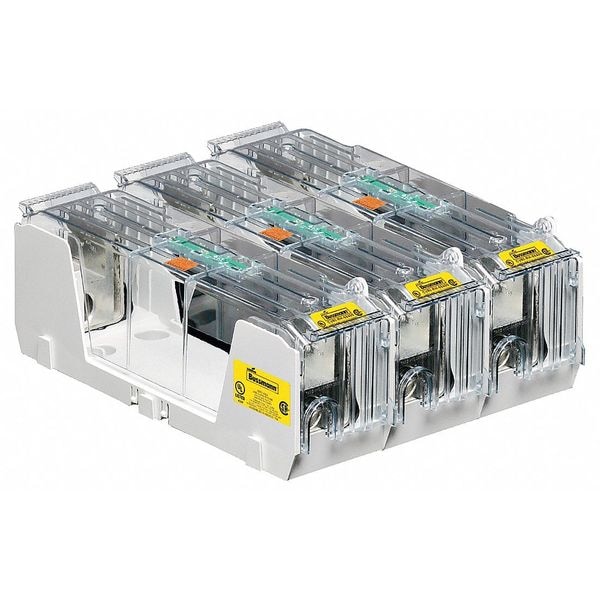

Open Fuse Block, H; K5 UL Class, 3 Poles, 225 to 400A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | H, K5 |
| Series | HM |
| Number of Poles | 3 |
| Amp Range | 225 to 400A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 10.91 in |
| Fuse Type | Industrial |
| Standards | CSA Certified, UL Listed |
| For Fuse Series | NOS |
| Height | 4.8 in |
| Fuse Holder Code | T |
| Length | 12-1/2 in |
| For Fuse Size | 11-5/8 in L x 2-19/32 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 4 AWG to 3/0 AWG |
| Weight | 6.92 lb |
| Short Circuit Current (KA) | 10 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
