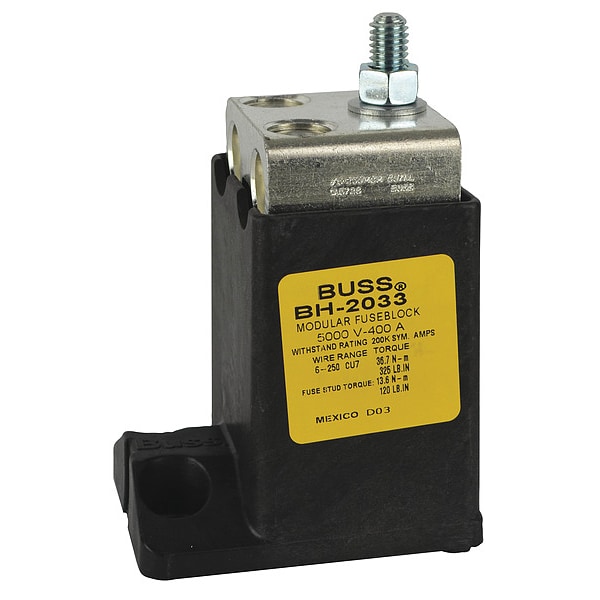

Open Fuse Block, J, T UL Class, 1 Poles, 201 to 400A Amp Range, 700V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J, T |
| Series | BH |
| Number of Poles | 1 |
| Amp Range | 201 to 400A |
| Voltage Rating | 700V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 500 MCM |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 2.66 in |
| Length | 3.94 in |
| Height | 5 in |
| For Fuse Series | BH |
| Fuse Type | High Speed Semiconductor |
| For Fuse Size | Various |
| Fits Fuse Type | Semiconductor |
| Weight | .76 LB |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
