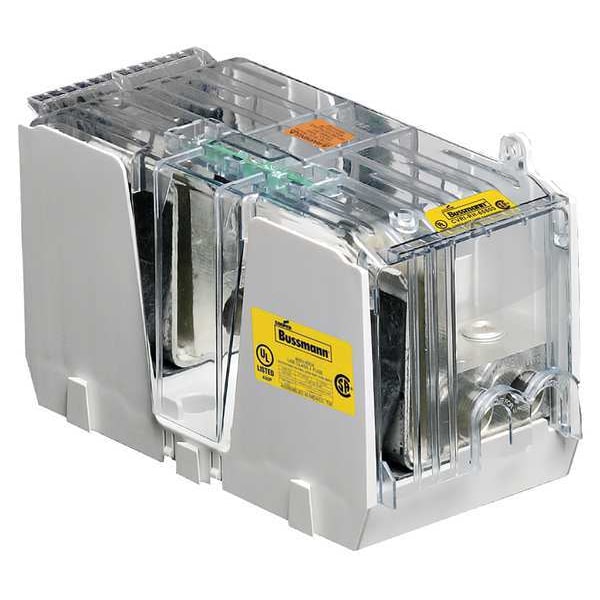

Open Fuse Block, J UL Class, 1 Poles, 450 to 600A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JM |
| Number of Poles | 1 |
| Amp Range | 450 to 600A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 4 AWG to 500 MCM |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 4.8 in |
| Length | 9.3 in |
| Height | 6 in |
| For Fuse Series | LPJ, JKS, DFJ |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| Fuse Holder Code | AE |
| Features | Short Circuit Protection |
| For Fuse Size | 8 in L x 2-1/2 in dia, 8 in L x 2-19/32 in dia |
| Fits Fuse Type | Industrial |
| Short Circuit Current (KA) | 200 kA |
| Weight | 3.96 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
