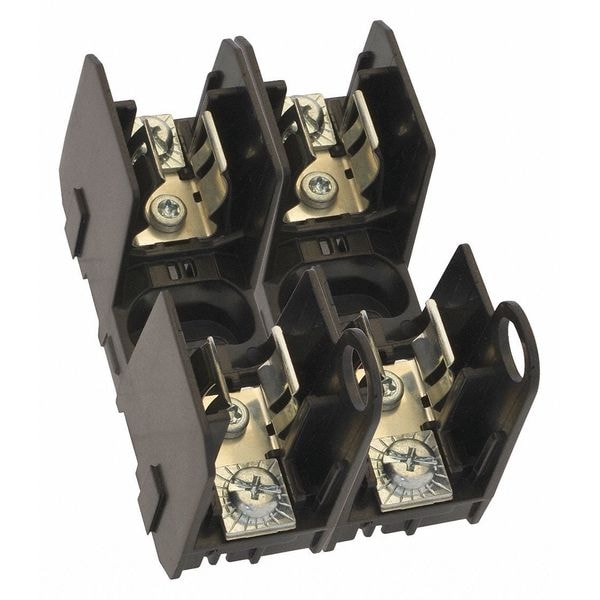

Open Fuse Block, J UL Class, 2 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | JM |
| Number of Poles | 2 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 18 AWG to 10 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 2.2 in |
| Length | 3.4 in |
| Height | 2.3 in |
| Features | Optional Cover and Indication |
| For Fuse Series | LPJ, JKS, DFJ |
| Fuse Type | Industrial |
| Standards | CE, CSA Certified, UL Listed |
| For Fuse Size | 2-1/4 in L x 13/16 in dia |
| Fits Fuse Type | Industrial |
| Short Circuit Current (KA) | 200 kA |
| Weight | 0.1 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
