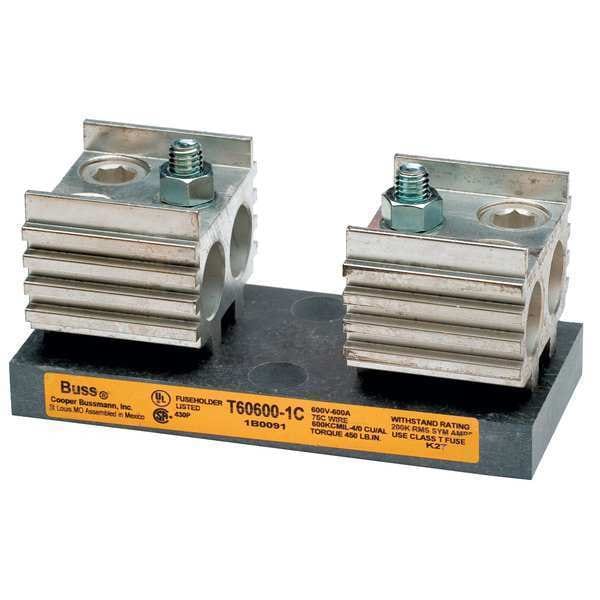

Open Fuse Block, T UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | T600 |
| Number of Poles | 1 |
| Amp Range | 401 to 600A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Width | 3 in |
| Length | 6-3/4 in |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| Features | Barriers Between Conductors |
| For Fuse Series | JJS, LPT |
| Height | 3.44 in |
| For Fuse Size | 3-1/16 in L x 1-1/4 in dia |
| Wire Range | 4/0 AWG to 600 MCM |
| Fits Fuse Type | Industrial |
| Short Circuit Current (KA) | 200 kA |
| Weight | 2.507 lb |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
