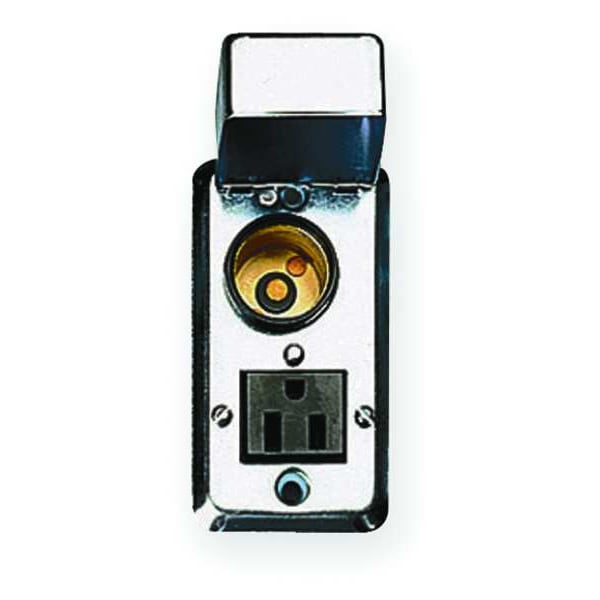

Plug Fuse Box, 15A Amp Range, 125V AC Volt Rating
| Item | Plug Fuse Box |
|---|---|
| Voltage Rating | 125V AC |
| Box Type | 2-1/4 in Handy |
| Cover Unit Configuration | Integrated Receptacle |
| Number of Fuse Holders | 1 |
| Standards | CSA Certified, UL Listed |
| Number of On/Off Switches | 0 |
| Max. HP | 1/2 hp |
| For Use With | Edison-Type T, P and W Plug Fuses, TC, TL |
| Number of 125V Receptacles | 1 |
| Width | 2.6 in |
| Features | Receptacle fuse holder single, |
| Length | 2.26 in |
| Fuse Block or Fuse Holder Type | box cover unit |
| Height | 4.2 in |
| Amps | 15 A |
| Fits Fuse Block Style | Non-Rejection |
| Weight | 0.35 lb |
| Max. Amps | 15 |
| Max. Voltage | 125V AC |
| Amps AC | 15 A |
| Package Quantity | 1 |
