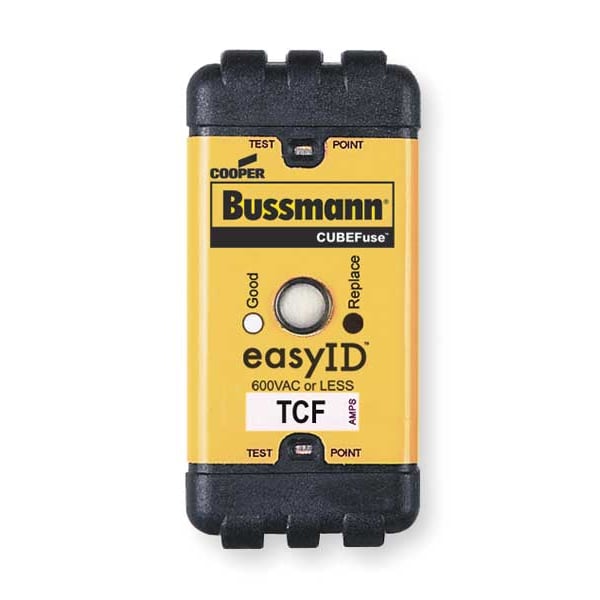

Plug Fuse, TCF Series, Time-Delay, 70A, 600V AC, Indicating, 300kA at 600V AC, 100kA at 300V DC
| Item | Plug Fuse |
|---|---|
| Series | TCF |
| Speed | Time-Delay |
| Amps | 70A |
| AC Voltage Rating | 600V AC |
| Visual Indication | Indicating |
| Interrupt Rating | 300 kA @ 600 V AC, 100 kA @ 300 V DC |
| Body Style | Screw-In |
| Body Material | Plastic |
| Equivalent Brand and Series | Bussmann TCF |
| Fits Fuse Block Style | Non-Rejection |
| DC Voltage Rating | 300V DC |
| Element | Dual |
| Depth | 1-1/4 in |
| Diameter | Not-Applicable |
| Class | CF |
| Width | 1 in |
| Length | 3 in |
| Fuse Holder Code | 2AAP1 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE/UL Special Purpose Guide JFHR/CSA Class 1422-02 |
| Fuse Size | 3" L x 1" W x 1-1/4" D |
| Compatible Fuse Block Series | TCFH |
| Equivalent Series | TCF |
| Mounting | Chassis |
| Weight | 0.284 lb |
| Connection Type | Blade |
| Package Quantity | 1 |
