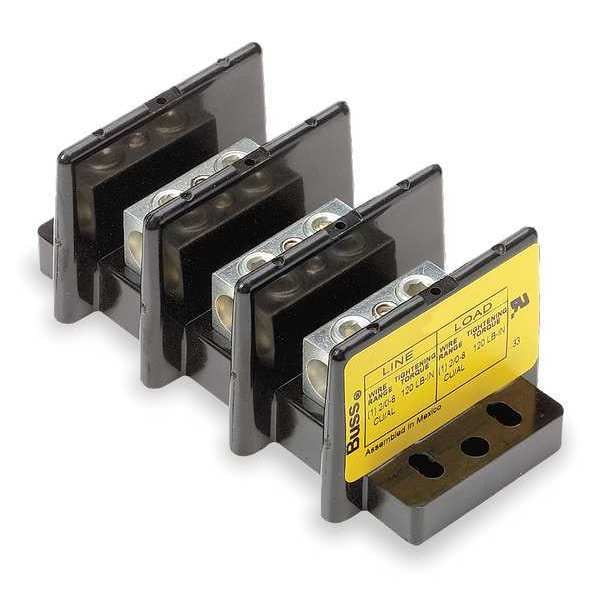

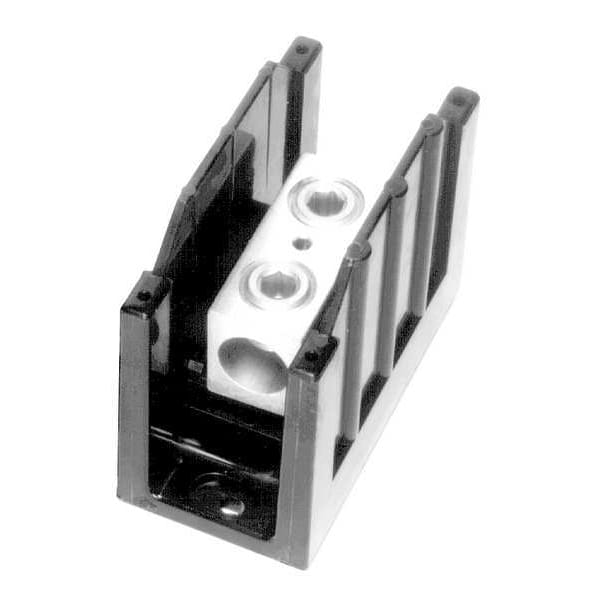

Bloque de distribución de energía, 115A, 1P, 1P secundario, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Power Distribution Block Design | Open |
| Primary Connections/Pole | 1 |
| Standards | CSA Class 6228-01, UL 1059 |
| Voltage Rating | 600V AC/DC |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 14 to 2 AWG CU, 8 to 2 AWG AL |
| Length | 2.88 in |
| Width | 1.06 in |
| Max. Amps | 115 A |
| Primary Wire Range (AWG) | 14 to 2 AWG CU, 8 to 2 AWG AL |
| Depth | 1-3/4 in |
| Color | Black |
| Material | Molded Thermoplastic |
| Height | 1.69 in |
| Length (Straight Wireway) | 2.88 in |
| For Line Aluminum Wire Size - Minimum | 8 AWG |
| Number of Circuits | 1 |
| Load Side Connection Type | Lug |
| Load Connections/Pole | 1 |
| RoHS Compliant | Yes |
| Primary Wire Range | 14 to 2 AWG (Copper), 8 to 2 AWG AL |
| Housing Color | Black |
| Secondary Wire Range | 14 to 2 AWG CU, 8 to 2 AWG AL |
| Line Side Connection Type | Lug |
| UL 94 Flammability Rating | V-0 |
| For Load Copper Wire Size - Maximum | 2 AWG |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 248 deg F |
| For Line Aluminum Wire Size - Maximum | 2 AWG |
| Terminal Material | Copper, Aluminum |
| Maximum Current - Copper Conductor | 115 A |
| Overall Width | 1.6 in |
| Overall Depth | 1.69 in |
| For Load Aluminum Wire Size - Minimum | 8 AWG |
| Maximum Voltage | 600 V AC/DC |
| For Conductor Material | Copper, Aluminum |
| For Line Copper Wire Size - Minimum | 14 AWG |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Maximum Current - Aluminum Conductor | 115 A |
| Minimum Operating Temperature | -4 deg F |
| Line Connections/Pole | 1 |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| For Line Copper Wire Size - Maximum | 2 AWG |
| Overall Length | 2.81 in |
| Type | Connector Block |
| Application | Power Distribution |
| Amperage Rating | 115 A |
| Short Circuit Rating | SCCR: 10 kA |
| Connection | Stud |
| Package Quantity | 1 |
