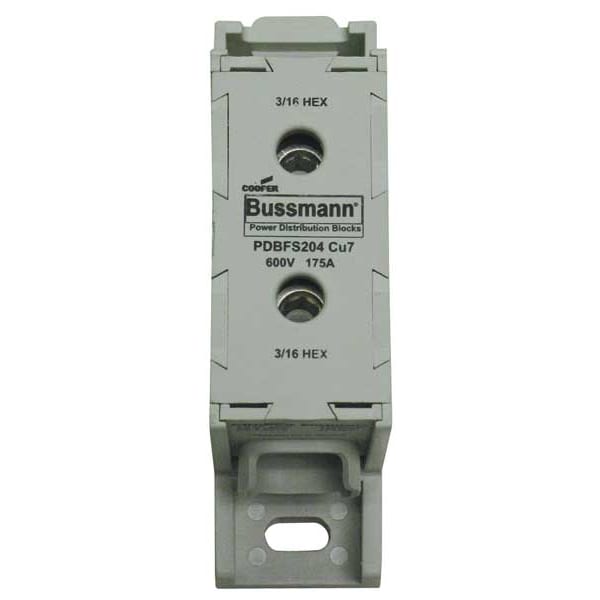

Bloque de distribución de energía, 175A, 1 polo, 1 polo primario, 600VCA.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 175 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 14 to 2/0 AWG CU, 8 to 2/0 AWG AL |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 14 to 2/0 AWG CU, 8 to 2/0 AWG AL |
| Power Distribution Block Design | Finger-Safe |
| Voltage Rating | 600V AC/DC |
| Standards | CE Component IEC, CSA Certified Class 6228-01, UL 1953 |
| Depth | 2.15 in |
| Width | 1.03 in |
| Length | 3.37 in |
| Length (Straight Wireway) | 3.37 in |
| Overall Length | 2.15 in |
| Secondary Wire Range | 14 to 2/0 AWG CU, 8 to 2/0 AWG AL |
| For Line Copper Wire Size - Maximum | 2/0 AWG |
| Overall Width | 0.99 in |
| For Load Copper Wire Size - Minimum | 14 AWG |
| For Load Aluminum Wire Size - Minimum | 8 AWG |
| For Line Aluminum Wire Size - Minimum | 8 AWG |
| For Line Copper Wire Size - Minimum | 14 AWG |
| Maximum Operating Temperature | 248 deg F |
| Number of Circuits | 1 |
| Load Connections/Pole | 1 |
| Terminal Material | Aluminum |
| For Conductor Material | Aluminum, Copper |
| Maximum Voltage | 600 V AC/DC |
| UL 94 Flammability Rating | V-0 |
| For Load Copper Wire Size - Maximum | 2/0 AWG |
| Line Side Connection Type | Lug |
| Primary Wire Range | 14 to 2/0 AWG (Copper), 8 to 2/0 AWG AL |
| RoHS Compliant | Yes |
| For Line Aluminum Wire Size - Maximum | 2/0 AWG |
| Line Connections/Pole | 1 |
| Load Side Connection Type | Lug |
| Overall Depth | 3.7 in |
| For Load Aluminum Wire Size - Maximum | 2/0 AWG |
| Maximum Current - Aluminum Conductor | 175 A |
| Maximum Current - Copper Conductor | 175 A |
| Minimum Operating Temperature | -4 deg F |
| Mounting | DIN rail, Panel |
| Short Circuit Current Rating | 200 kAIC |
| Weight | 0.19 lb |
| Features | IP-20 Finger-safe |
| Package Quantity | 1 |
