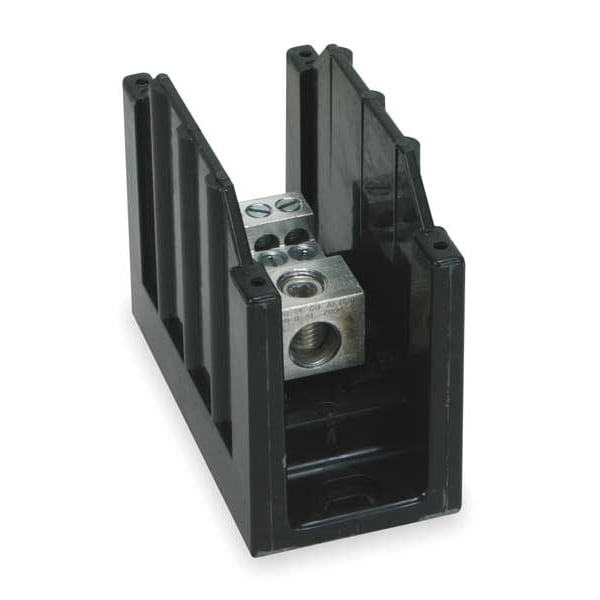

Bloque de Distribución de Energía, 175A, 1 Fase, 600VCA, 1 Fase Primario
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 175 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 14 to 2/0 AWG CU, 8 to 2/0 AWG AL |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | 14 to 4 AWG CU, 8 to 4 AWG AL |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Width | 1.98 in |
| Length | 4 in |
| Depth | 3.32 in |
| Standards | CSA Class 6228-01, UL 1059 |
| Length (Straight Wireway) | 4 in |
| Number of Circuits | 1 |
| Secondary Wire Range | 14 to 4 AWG CU, 8 to 4 AWG AL |
| UL 94 Flammability Rating | V-0 |
| Housing Material | Thermoplastic |
| Terminal Material | Aluminum |
| Overall Width | 2-1/2 in |
| For Load Aluminum Wire Size - Minimum | 8 AWG |
| Maximum Current - Copper Conductor | 175 A |
| For Load Copper Wire Size - Minimum | 14 AWG |
| For Load Aluminum Wire Size - Maximum | 4 AWG |
| Line Side Connection Type | Lug |
| Line Connections/Pole | 1 |
| For Line Aluminum Wire Size - Maximum | 2/0 AWG |
| Load Side Connection Type | Lug |
| RoHS Compliant | Yes |
| Housing Color | Black |
| Load Connections/Pole | 6 |
| For Line Copper Wire Size - Minimum | 14 AWG |
| Maximum Operating Temperature | 248 deg F |
| For Load Copper Wire Size - Maximum | 4 AWG |
| For Line Aluminum Wire Size - Minimum | 8 AWG |
| Overall Length | 5-1/2 in |
| Overall Depth | 3-1/2 in |
| Minimum Operating Temperature | -4 deg F |
| For Line Copper Wire Size - Maximum | 2/0 AWG |
| Maximum Voltage | 600 V AC/DC |
| Maximum Current - Aluminum Conductor | 175 A |
| Primary Wire Range | 14 to 2/0 AWG (Copper), 8 to 2/0 AWG AL |
| For Conductor Material | Aluminum, Copper |
| Short Circuit Current Rating | 200 kA |
| Material | Molded Thermoplastic, Tin Plated Aluminum |
| Weight | 0.57 lb |
| Color | Black |
| Package Quantity | 1 |
