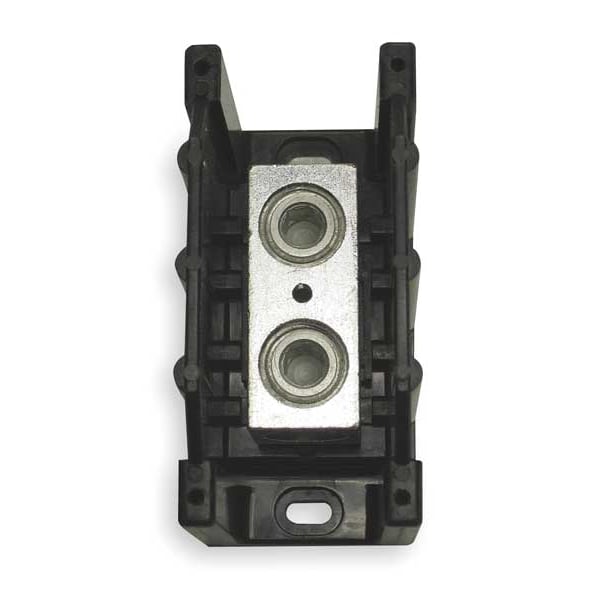

Bloque de distribución de energía, 310A, 1P, cableado de calibre 6AWG-350 MCM, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 310 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 6 AWG to 250 MCM |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 6 AWG to 250 MCM |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Depth | 3.32 in |
| Standards | CSA Class 6228-01, UL 1059 |
| Width | 1.98 in |
| Length | 4 in |
| Length (Straight Wireway) | 4 in |
| Line Side Connection Type | Lug |
| Maximum Current - Copper Conductor | 310 A |
| Primary Wire Range | 6 AWG to 350 kcmil |
| Secondary Wire Range | 6 AWG to 350 MCM |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| Housing Color | Black |
| For Load Aluminum Wire Size - Maximum | 250 kcmil |
| Overall Depth | 3.32 in |
| For Line Copper Wire Size - Minimum | 6 AWG |
| Overall Length | 3.32 in |
| UL 94 Flammability Rating | V-0 |
| Housing Material | Thermoplastic |
| For Load Copper Wire Size - Minimum | 6 AWG |
| Load Side Connection Type | Lug |
| For Line Copper Wire Size - Maximum | 350 kcmil |
| Maximum Operating Temperature | 248 deg F |
| Maximum Voltage | 600 V AC/DC |
| Number of Circuits | 1 |
| For Load Aluminum Wire Size - Minimum | 6 AWG |
| Terminal Material | Aluminum |
| For Conductor Material | Aluminum, Copper |
| For Line Aluminum Wire Size - Maximum | 250 kcmil |
| For Load Copper Wire Size - Maximum | 350 kcmil |
| Line Connections/Pole | 1 |
| Overall Width | 1.98 in |
| Maximum Current - Aluminum Conductor | 310 A |
| Load Connections/Pole | 1 |
| Minimum Operating Temperature | -4 deg F |
| Short Circuit Current Rating | 10 kAIC |
| Color | Black |
| Material | Molded Thermoplastic, Tin Plated Aluminum |
| Weight | 0.63 lb |
| Package Quantity | 1 |
