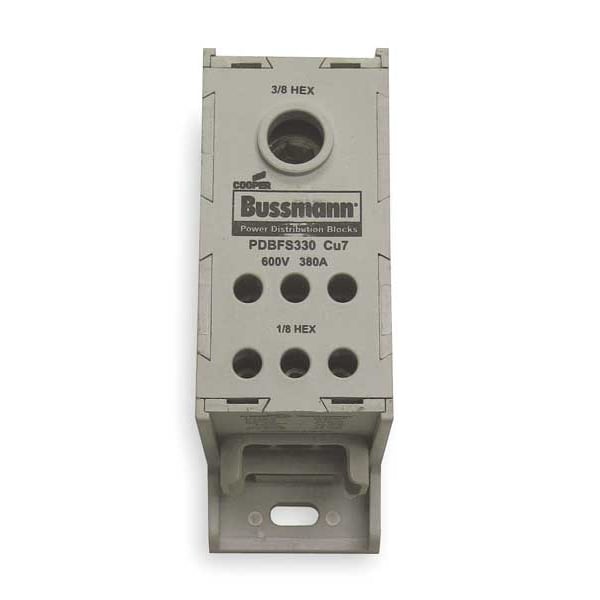

Pwr Dist Block, 380A, 1P, 6P Secondary, 600V
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 380 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 6 AWG to 500 MCM |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | 14 to 2 AWG |
| Power Distribution Block Design | Finger-Safe |
| Voltage Rating | 600V AC/DC |
| Depth | 2.95 in |
| Length | 4.67 in |
| Width | 1.55 in |
| Standards | CE Component IEC, CSA Certified Class 6228-01, UL 1953 |
| Length (Straight Wireway) | 4.67 in |
| Maximum Operating Temperature | 248 deg F |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Line Side Connection Type | Lug |
| RoHS Compliant | Yes |
| Line Connections/Pole | 1 |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Overall Length | 4.63 in |
| Overall Depth | 2.98 in |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| Maximum Voltage | 600 V AC/DC |
| Maximum Current - Copper Conductor | 380 A |
| Primary Wire Range | 6 AWG to 500 kcmil |
| For Line Aluminum Wire Size - Maximum | 500 kcmil |
| Terminal Material | Aluminum |
| For Conductor Material | Aluminum, Copper |
| Number of Circuits | 1 |
| Load Connections/Pole | 6 |
| Secondary Wire Range | 14 to 2 AWG |
| For Load Copper Wire Size - Maximum | 2 AWG |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Minimum Operating Temperature | -4 deg F |
| Maximum Current - Aluminum Conductor | 380 A |
| For Line Copper Wire Size - Minimum | 6 AWG |
| UL 94 Flammability Rating | V-0 |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| Overall Width | 1.58 in |
| Load Side Connection Type | Lug |
| Mounting | Panel |
| Weight | 0.53 lb |
| Features | IP-20 Finger-safe |
| Short Circuit Current Rating | 200 kA (6 To 2 AWG), 100 kA (14 To 2 AWG) |
| Package Quantity | 1 |
