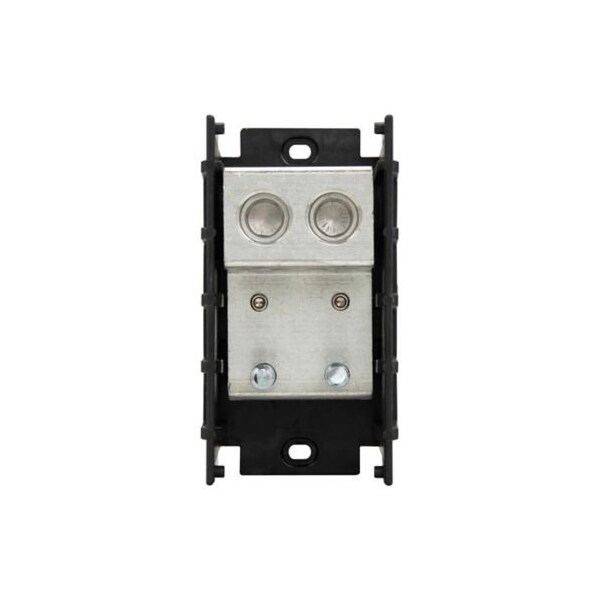

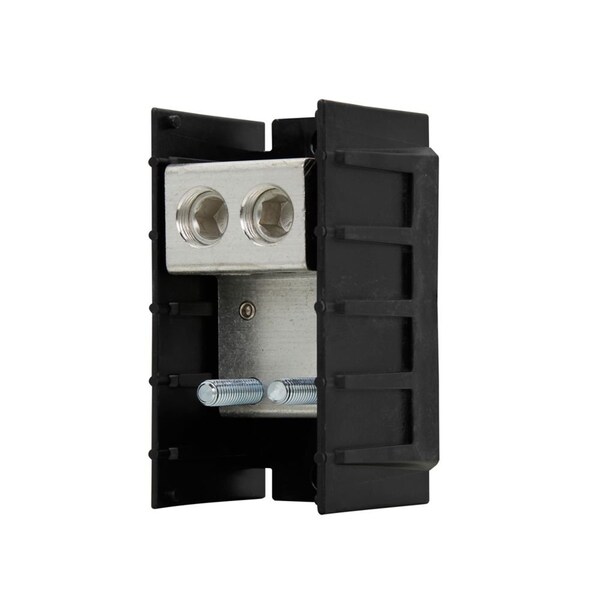

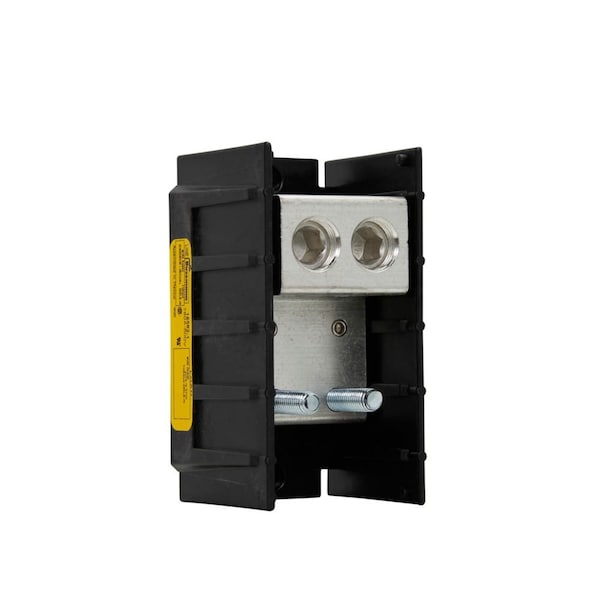

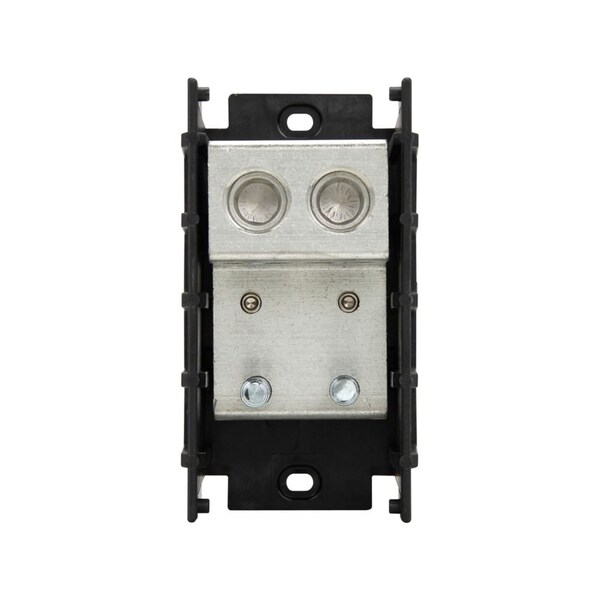

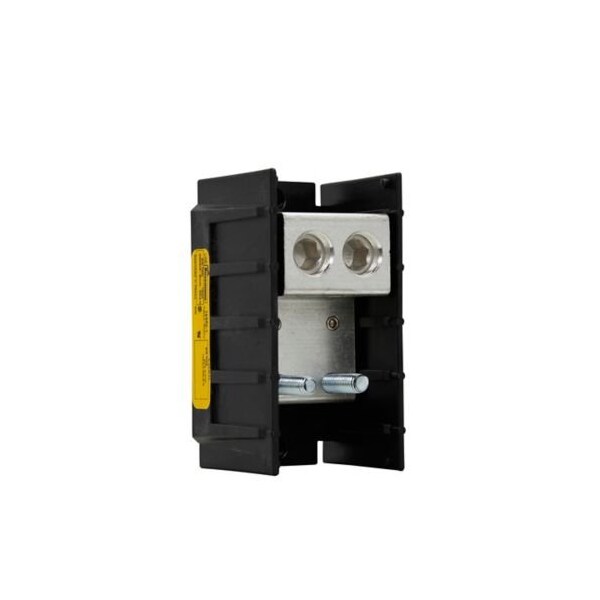

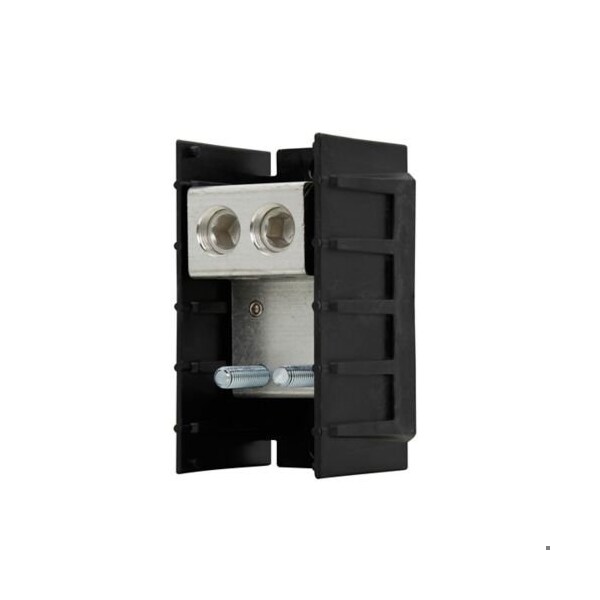

Bloque de distribución de energía, 380A, 2 polos, calibre 6AWG-500 MCM, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 2 |
| Max. Amps | 380 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 6 AWG to 500 MCM |
| Secondary Connection/Pole | 21 |
| Secondary Wire Range (AWG) | 14 to 6 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 5-1/2 in |
| Standards | CSA Class 6228-01, UL 1059 |
| Width | 5.79 in |
| Depth | 2.93 in |
| Length (Straight Wireway) | 5-1/2 in |
| Line Side Connection Type | Lug |
| Maximum Current - Copper Conductor | 380 A |
| For Conductor Material | Aluminum, Copper |
| Overall Depth | 4 in |
| Number of Circuits | 2 |
| Overall Width | 4-1/2 in |
| Minimum Operating Temperature | -4 deg F |
| Maximum Voltage | 600 V AC/DC |
| Terminal Material | Aluminum, Copper |
| Load Side Connection Type | Lug |
| Load Connections/Pole | 21 |
| For Line Aluminum Wire Size - Maximum | 500 kcmil |
| UL 94 Flammability Rating | V-0 |
| Primary Wire Range | 6 AWG to 500 kcmil |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| RoHS Compliant | Yes |
| For Load Copper Wire Size - Minimum | 14 AWG |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Line Connections/Pole | 1 |
| Maximum Operating Temperature | 248 deg F |
| For Load Copper Wire Size - Maximum | 6 AWG |
| Maximum Current - Aluminum Conductor | 380 A |
| For Load Aluminum Wire Size - Maximum | 6 AWG |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Overall Length | 6-1/2 in |
| Secondary Wire Range | 14 to 6 AWG |
| For Line Copper Wire Size - Minimum | 6 AWG |
| Weight | 1.26 lb |
| Package Quantity | 1 |
