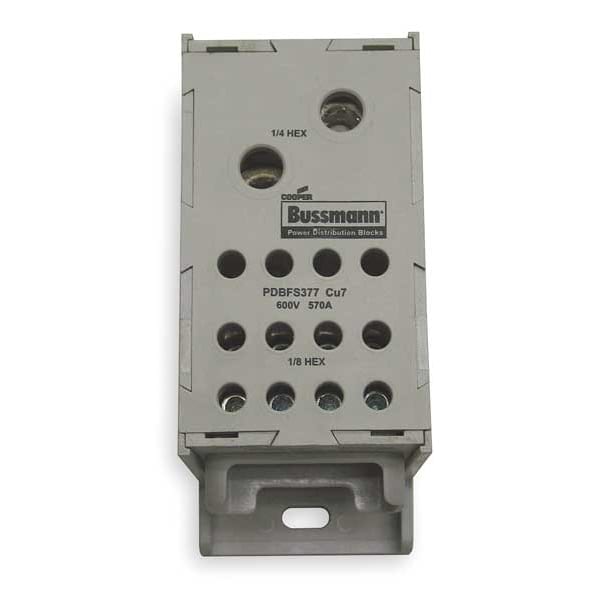

Pwr Dist Block, 570A, 1P, 4AWG-300 MCM, 600V
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 570 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | 4 AWG to 300 MCM |
| Secondary Connection/Pole | 12 |
| Secondary Wire Range (AWG) | 12 to 4 AWG AL, 14 to 4 AWG CU |
| Power Distribution Block Design | Finger-Safe |
| Voltage Rating | 600V AC/DC |
| Depth | 2.93 in |
| Standards | CE Component IEC, CSA Certified Class 6228-01, UL 1953 |
| Width | 1.88 in |
| Length | 4.67 in |
| Length (Straight Wireway) | 4.67 in |
| Overall Depth | 2.94 in |
| For Load Copper Wire Size - Maximum | 4 AWG |
| Maximum Voltage | 600 V AC/DC |
| Secondary Wire Range | 12 to 4 AWG AL, 14 to 4 AWG CU |
| Line Connections/Pole | 2 |
| Maximum Current - Aluminum Conductor | 570 A |
| Terminal Material | Aluminum |
| Minimum Operating Temperature | -4 deg F |
| Maximum Current - Copper Conductor | 570 A |
| Line Side Connection Type | Lug |
| RoHS Compliant | Yes |
| Overall Length | 4.6 in |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| Overall Width | 1.86 in |
| For Line Copper Wire Size - Minimum | 4 AWG |
| For Load Aluminum Wire Size - Maximum | 4 AWG |
| Load Connections/Pole | 12 |
| Load Side Connection Type | Lug |
| Primary Wire Range | 4 AWG to 300 kcmil |
| UL 94 Flammability Rating | V-0 |
| For Line Aluminum Wire Size - Maximum | 300 kcmil |
| For Conductor Material | Aluminum, Copper |
| For Line Copper Wire Size - Maximum | 300 kcmil |
| Maximum Operating Temperature | 248 deg F |
| For Load Aluminum Wire Size - Minimum | 12 AWG |
| Number of Circuits | 1 |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Mounting | DIN rail, Panel |
| Short Circuit Current Rating | 200 kA (8 To 4 AWG), 100 kA (14 To 4 AWG) |
| Features | IP-20 Finger-safe |
| Weight | 0.74 lb |
| Package Quantity | 1 |
