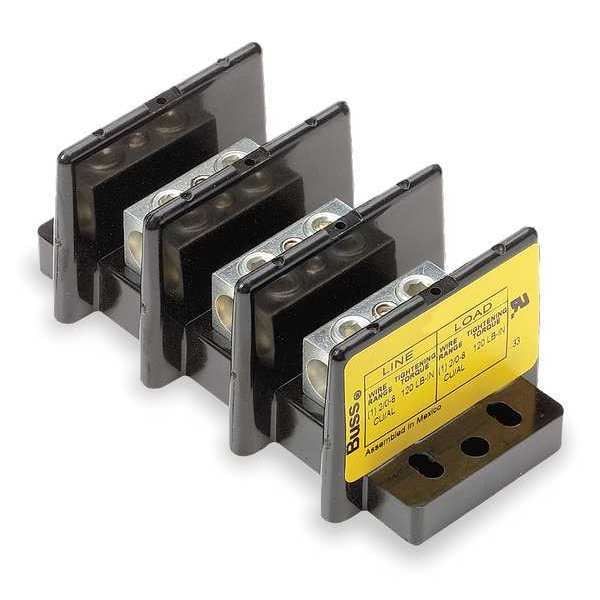

Bloque de distribución de energía, 840A, 2 polos, calibre 2 AWG - 600 MCM, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 2 |
| Max. Amps | 840 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | 2 AWG to 600 MCM |
| Secondary Connection/Pole | 8 |
| Secondary Wire Range (AWG) | (4) 14 to 4 AWG, (4) 6 to 3/0 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 5-1/2 in |
| Depth | 2.93 in |
| Width | 5.79 in |
| Standards | CSA Class 6228-01, UL 1059 |
| Length (Straight Wireway) | 5-1/2 in |
| Load Connections/Pole | 8 |
| Overall Length | 5.43 in |
| UL 94 Flammability Rating | V-0 |
| For Line Aluminum Wire Size - Minimum | 2 AWG |
| Line Connections/Pole | 2 |
| Terminal Material | Aluminum, Copper |
| For Line Copper Wire Size - Minimum | 2 AWG |
| Primary Wire Range | 2 AWG to 600 kcmil |
| Maximum Current - Copper Conductor | 840 A |
| Load Side Connection Type | Lug |
| Line Side Connection Type | Lug |
| For Load Aluminum Wire Size - Minimum | 14 AWG, 6 AWG |
| RoHS Compliant | Yes |
| Number of Circuits | 2 |
| Maximum Voltage | 600 V AC/DC |
| Maximum Current - Aluminum Conductor | 840 A |
| Maximum Operating Temperature | 248 deg F |
| For Load Aluminum Wire Size - Maximum | 3/0 AWG, 4 AWG |
| Secondary Wire Range | 14 to 3/0 AWG |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Minimum Operating Temperature | -4 deg F |
| Overall Depth | 2.92 in |
| For Load Copper Wire Size - Maximum | 3/0 AWG |
| For Line Copper Wire Size - Maximum | 600 kcmil |
| For Line Aluminum Wire Size - Maximum | 600 kcmil |
| For Conductor Material | Aluminum, Copper |
| Overall Width | 5.77 in |
| Weight | 2.52 lb |
| Package Quantity | 1 |
