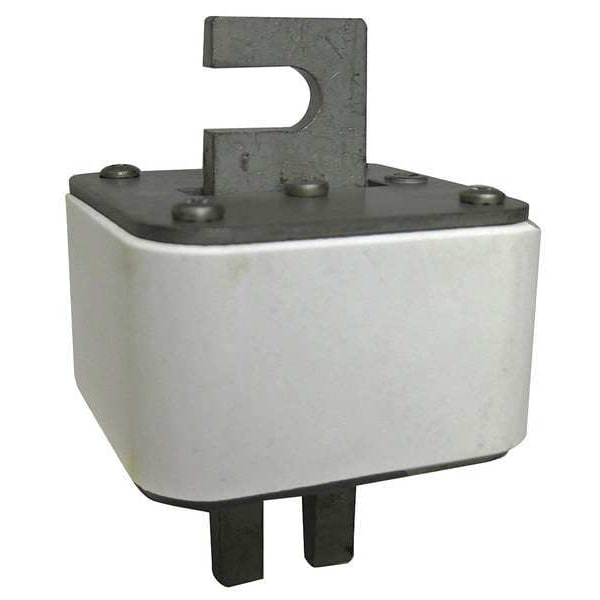

Semiconductor Fuse, 170M Series, 400A, Fast-Acting, 690V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | 170M |
| Amps | 400A |
| Speed | Fast-Acting |
| AC Voltage Rating | 690V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Bolt-On |
| Visual Indication | Indicating |
| Interrupt Rating | 200kA at 690V AC |
| Body Material | Ceramic |
| Diameter | 2-3/32 in |
| Length | 1-31/32 in |
| Equivalent Brand and Series | Bussmann 170M, Littelfuse PSR, Mersen PC |
| Equivalent Series | 170M, PC, PSR |
| Fits Fuse Block Style | Non-Rejection |
| Width | 2-3/32 in |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Indicating / Nonindicating | Indicating |
| Standards | CE, IEC 60269 Part 4, UL Recognized |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Element | Single |
| Weight | 479.6667 g |
| Package Quantity | 1 |
