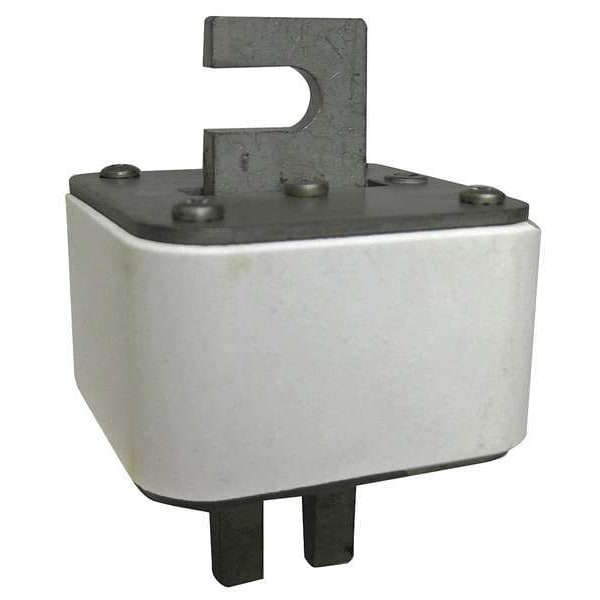

Semiconductor Fuse, 170M Series, 500A, Fast-Acting, 690V AC, Bolt-On
| Item | Semiconductor Fuse |
|---|---|
| Series | 170M |
| Amps | 500A |
| Speed | Fast-Acting |
| AC Voltage Rating | 690V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Bolt-On |
| Visual Indication | Indicating |
| Interrupt Rating | 200kA at 690V AC |
| Body Material | Melamine |
| Diameter | 3 in |
| Length | 2-5/64 in |
| Equivalent Brand and Series | Bussmann 170M, Littelfuse PSR, Mersen PC |
| Equivalent Series | 170M, PC, PSR |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Width | 3 in |
| Fuse Speed | Very Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Indicating / Nonindicating | Indicating |
| Standards | UL Recognized Component File E76491, CSA Certified, CSA Certified |
| Mounting | Flush |
| Weight | 278 g |
| Package Quantity | 1 |
