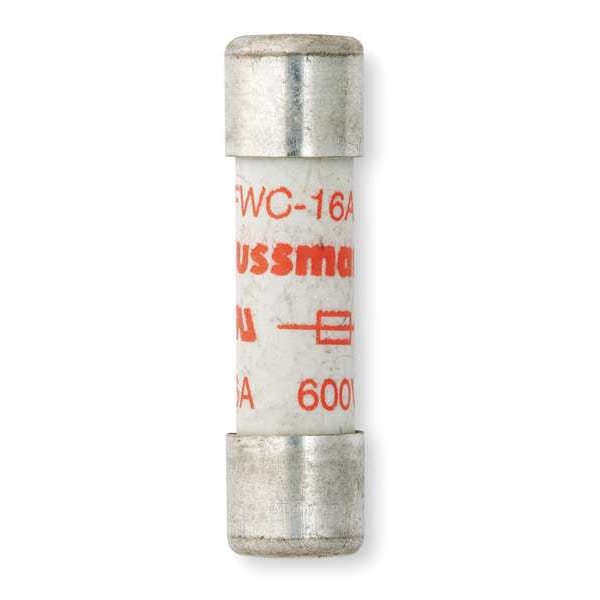

Semiconductor Fuse, FWC-A10F Series, 16A, Fast-Acting, 600V AC, Cylindrical
| CAD Available | Yes |
|---|---|
| Item | Semiconductor Fuse |
| Series | FWC-A10F |
| Amps | 16A |
| Speed | Fast-Acting |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 700V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 50kA at 700V DC |
| Body Material | Fiberglass |

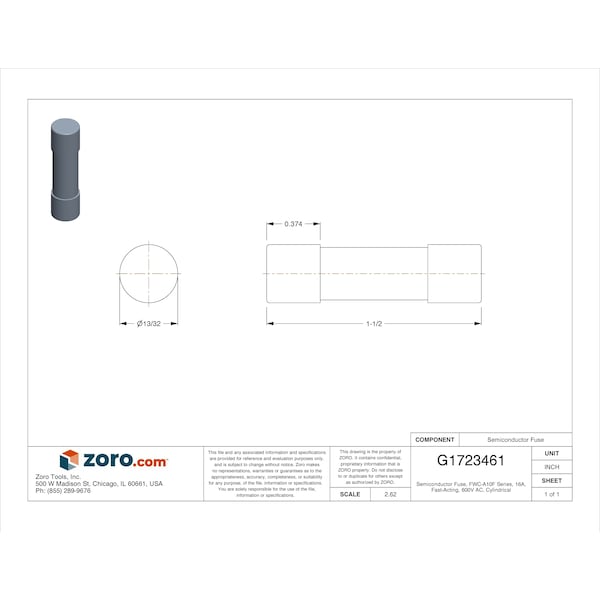

| Diameter | 13/32 in |
| Length | 1-1/2 in |
| Equivalent Brand and Series | Bussmann FWC, Mersen A60Q |
| Equivalent Series | A60Q, FWC |
| Fits Fuse Block Style | Non-Rejection |
| Indicating / Nonindicating | Nonindicating |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Standards | CE, UL Recognized |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Element | Single |
| Fuse Holder Code | D |
| Compatible Fuse Block Series | CHM, HPS |
| Weight | 8.8 g |
| Package Quantity | 1 |
