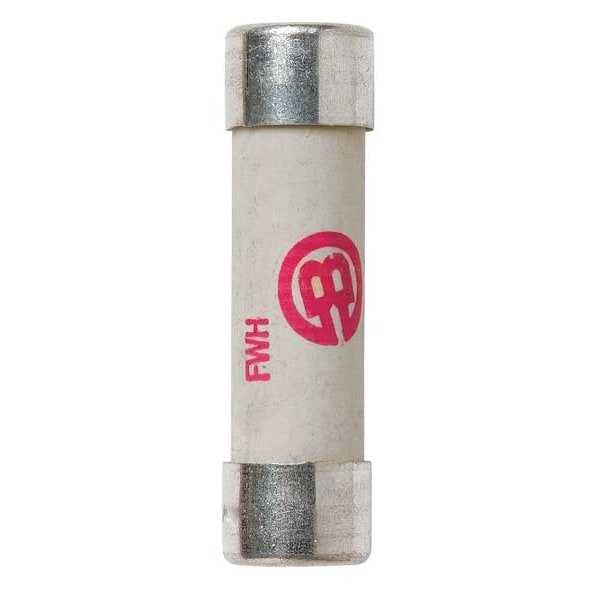

Semiconductor Fuse, FWH-A6F Series, 16A, Fast-Acting, 500V AC, Cylindrical
| Item | Semiconductor Fuse |
|---|---|
| Series | FWH-A6F |
| Amps | 16A |
| Speed | Fast-Acting |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 500V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA at 500V AC |
| Body Material | Fiberglass |
| Diameter | 1/4 in |
| Length | 1-1/4 in |
| Equivalent Brand and Series | A50QS, Bussmann FWH, Littelfuse L50S, Mersen A50P |
| Equivalent Series | FWH, A50P, A50QS, L50S |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Rejection / Nonrejection | Nonrejection |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE, CSA Certified, UL Recognized |
| Fuse Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| Compatible Fuse Block Series | 1BS |
| Weight | 0.4 lb |
| Package Quantity | 1 |
