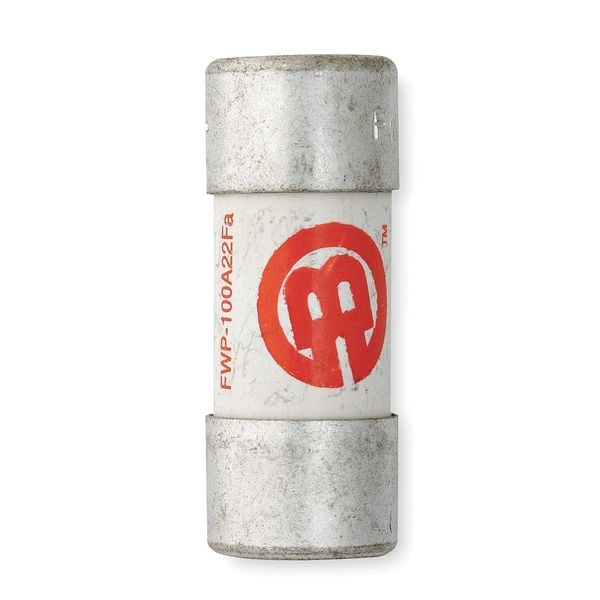

Semiconductor Fuse, FWP-A22F Series, 80A, Fast-Acting, 700V AC, Cylindrical
| CAD Available | Yes |
|---|---|
| Item | Semiconductor Fuse |
| Series | FWP-A22F |
| Amps | 80A |
| Speed | Fast-Acting |
| AC Voltage Rating | 700V AC |
| DC Voltage Rating | 700V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 700V AC, 50kA at 500V DC |
| Body Material | Fiberglass |

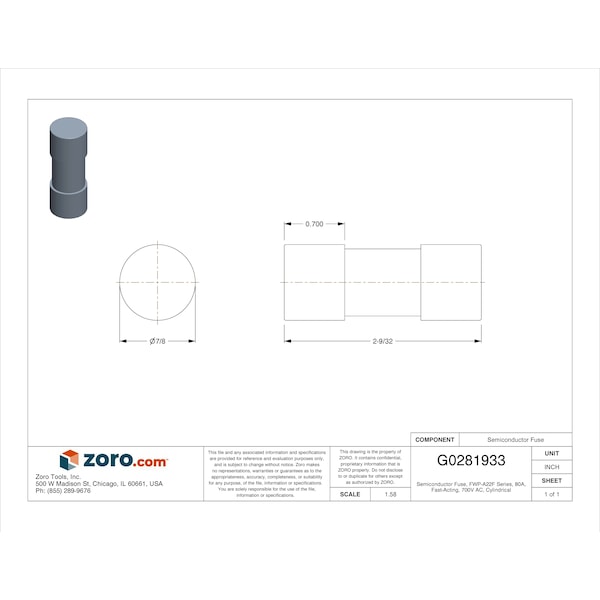

| Diameter | 7/8 in |
| Length | 2-9/32 in |
| Equivalent Brand and Series | A70QS, Bussmann FWP, Littelfuse L70QS, Mersen A70P |
| Equivalent Series | FWP, A70QS, A70P, L70QS |
| Fits Fuse Block Style | Non-Rejection |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE, CSA Certified, UL Recognized |
| Indicating / Nonindicating | Nonindicating |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Element | Single |
| Compatible Fuse Block Series | CHM |
| Weight | 61.3 g |
| Package Quantity | 1 |
