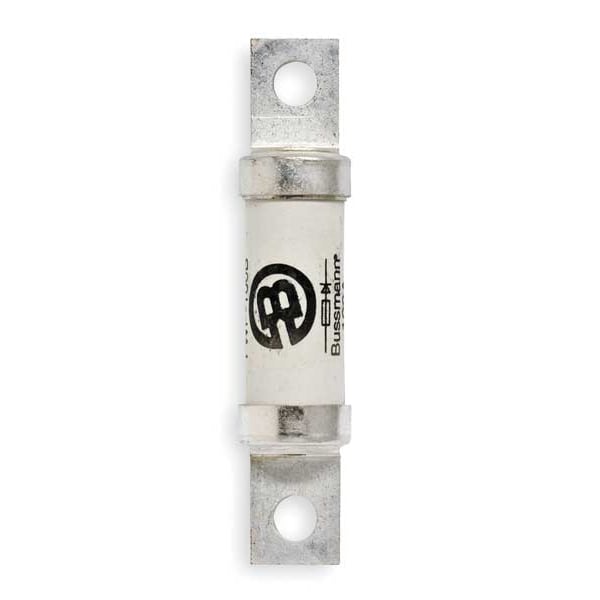

Semiconductor Fuse, FWP-B Series, 100A, Fast-Acting, 700V AC, Bolt-On
| CAD Available | Yes |
|---|---|
| Item | Semiconductor Fuse |
| Series | FWP-B |
| Amps | 100A |
| Speed | Fast-Acting |
| AC Voltage Rating | 700V AC |
| DC Voltage Rating | 700V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 700V AC, 50kA at 700V DC |
| Body Material | Ceramic |

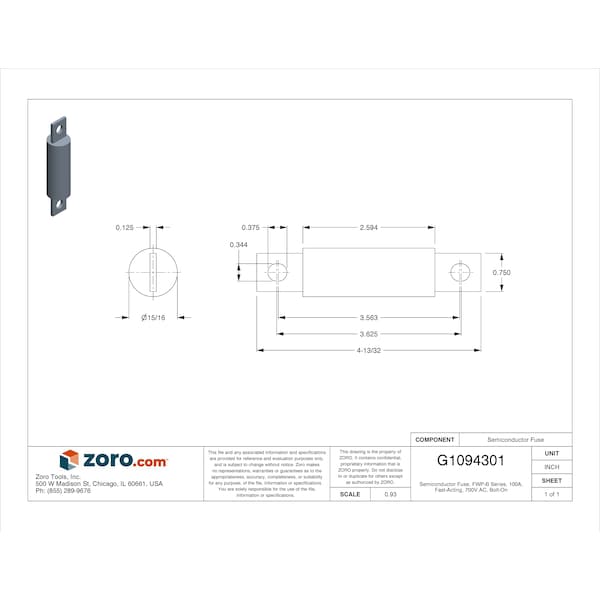

| Diameter | 61/64 in |
| Length | 4-13/32 in |
| Equivalent Brand and Series | A70QS, Bussmann FWP, Littelfuse L70QS, Mersen A70P |
| Equivalent Series | FWP, A70QS, A70P, L70QS |
| Fits Fuse Block Style | Non-Rejection |
| Standards | CE, CSA Certified, UL Recognized |
| Element | Single |
| Rejection / Nonrejection | Nonrejection |
| Fuse Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| Compatible Fuse Block Series | CHM |
| Mounting | Stud |
| Weight | 109 g |
| Package Quantity | 1 |
