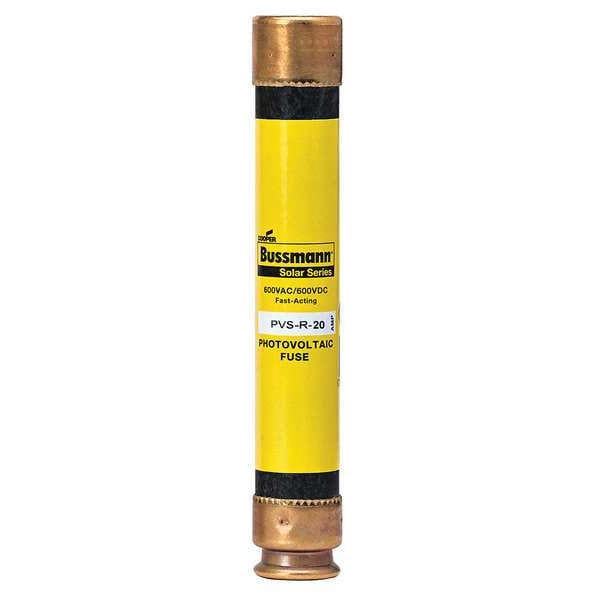

Solar Fuse, PVS-R Series, 20A, Fast-Acting, 600V AC, Cylindrical
| Item | Solar Fuse |
|---|---|
| Series | PVS-R |
| Amps | 20A |
| Speed | Fast-Acting |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 600V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 20kA at 600V DC |
| Body Material | Fiberglass |
| Diameter | 13/16 in |
| Length | 5 in |
| Equivalent Brand and Series | Bussmann PVS-R |
| Equivalent Series | PVS-R |
| Fits Fuse Block Style | Rejection |
| Indicating / Nonindicating | Nonindicating |
| Fuse Speed | Fast Acting |
| Fuse Holder Code | P |
| Class | RK5 |
| Element | Single |
| Standards | UL Std. 248-12, Class RK5, UL Listed, Guide JFGA, File E335324, Photovoltaic to UL 2579, CSA Component Certified C22.2 |
| Rejection / Nonrejection | Rejection |
| Package Quantity | 1 |
