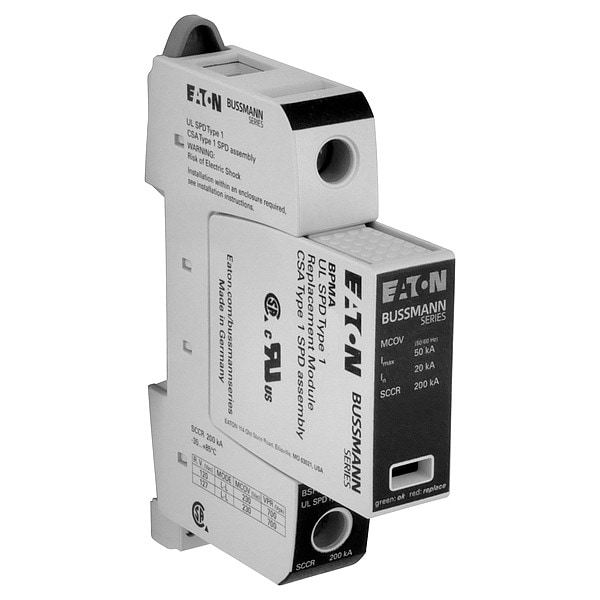

Surge Arrester, 1 Phase, 120/240V, 1 Poles
| Item | Surge Arrester |
|---|---|
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 1 |
| Voltage Protection Rating | 1200V, 700V |
| Max. Surge Current per Mode | 50 kA |
| Max. Surge Current per Phase | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Enclosure Material | Thermoplastic |
| Length | 0.71 in |
| Depth | 3.54 in |
| Width | 2.56 in |
| Type | Surge arrestor |
| Application | Surge Protection |
| Surge Current | 200 kA |
| Special Features | Technology type MOV |
| Indicator type | Remote contact |
| Operating voltage | 600/1200 |
| Frequency Rating | 50/60 Hz |
| Mounting Method | 35 mm DIN rail |
| Operating Temperature | -35 to 85 °C |
| Certifications | UL 94V0 |
| Degree of protection | IP20 |
| Includes Surge Counter | No |
| System Connection | Series |
| Package Quantity | 1 |
