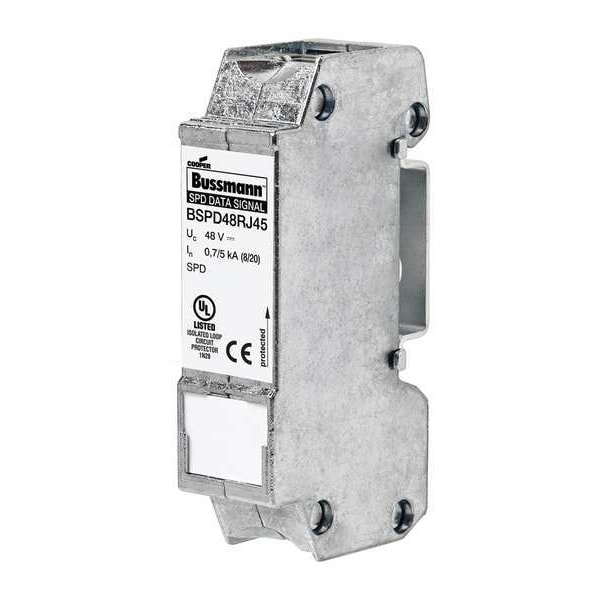

Surge Protection Device, 1 Phase, 48V, 1 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 48 V |
| Number of Poles | 1 |
| Voltage Protection Rating | 190V (L-L), 600V (L-G) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current Per Mode | 10 kA |
| Max. Surge Current per Phase | 10 kA |
| Nominal Discharge Current | 150 A |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 48V DC |
| IP Rating | IP20 |
| Enclosure Material | Zinc |
| Length | 2.99 in |
| Depth | 1.42 in |
| Width | 3/4 in |
| Wire Gauge | 28 to 12 AWG |
| Modular / Nonmodular | Modular |
| Standards | EN 61643-21, IEC 61643-21 |
| Min. Operating Temp. | -40 deg F |
| Color | Gray |
| Amps | 1 |
| System Connection | Series |
| Max. Operating Temp. | 176 deg F |
| Type | Surge protection device |
| Includes Surge Counter | No |
| Used with | Data signal |
| Certifications | UL 94V0 |
| Operating Temperature | -40 to 80 °C |
| Mounting Method | DIN rail |
| Package Quantity | 1 |
