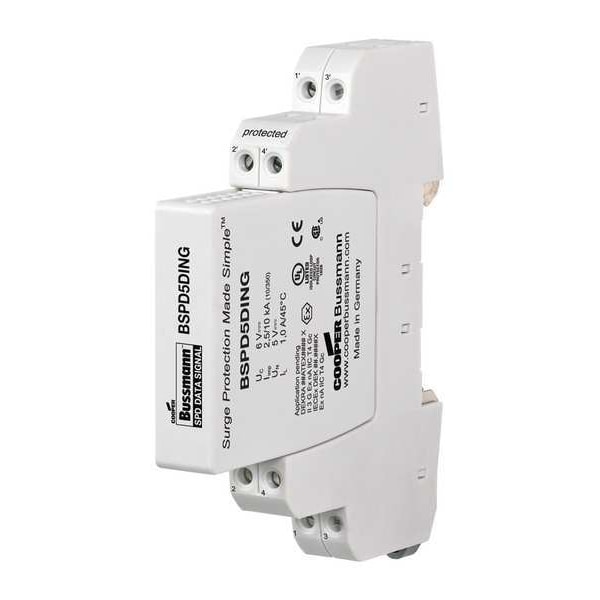

Surge Protection Device, 1 Phase, 5V, 4 Poles, 4 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 5 V |
| Number of Poles | 4 |
| Voltage Protection Rating | 25V (L-L), 550V (L-G) |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current Per Mode | 2.5 kA |
| Max. Surge Current per Phase | 2.5 kA |
| Nominal Discharge Current | 10 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 6V DC |
| IP Rating | IP20 |
| Enclosure Material | Polyamide |
| Length | 3.54 in |
| Depth | 2.83 in |
| Width | 0.47 in |
| Wire Gauge | 28 to 12 AWG |
| Standards | EN 61643-21, IEC 61643-21, UL 497B |
| Modular / Nonmodular | Modular |
| Lightning Impulse Current | 10 kA |
| Max. Operating Temp. | 176 deg F |
| Amps | 1 |
| Min. Operating Temp. | -40 deg F |
| System Connection | Series |
| Color | Gray |
| Includes Surge Counter | No |
| Certifications | UL Listed |
| Package Quantity | 1 |
