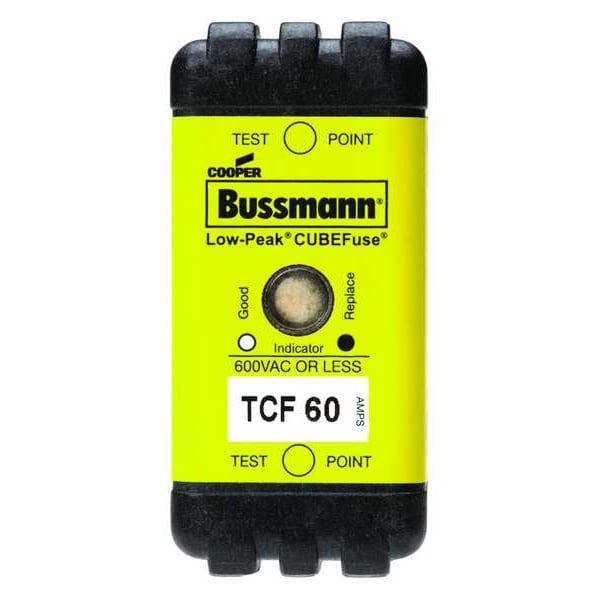

UL Class Fuse, CF Class, TCF Series, Time-Delay, 60A, 600V AC, Indicating
| Class | CF |
|---|---|
| Series | TCF |
| Speed | Time-Delay |
| Amps | 60A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Indicating |
| Interrupt Rating | 100kA at 300V DC, 300kA at 600V AC |
| Body Style | Plug-In |
| Body Material | Plastic |
| Length | 2-1/8 in |
| Diameter | Not-Applicable |
| Equivalent Brand and Series | Bussmann TCF |
| Equivalent Series | TCF |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | TCFH |
| Item | UL Class Fuse |
| Depth | 1-1/8 in |
| Width | 1 in |
| Standards | CE/UL Special Purpose Guide JFHR/CSA Class 1422-02 |
| Element | Dual |
| Fuse Holder Code | 2AAP3 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Connection Type | Blade |
| Weight | 0.17 lb |
| Mounting | Chassis |
| Package Quantity | 1 |
