UL Class Fuse, G Class, SC Series, Time-Delay, 15A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | G |
| Series | SC |
| Speed | Time-Delay |
| Amps | 15A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 170V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 600V AC, 10kA at 170V DC |
| Body Style | Cylindrical |
| Body Material | Melamine |

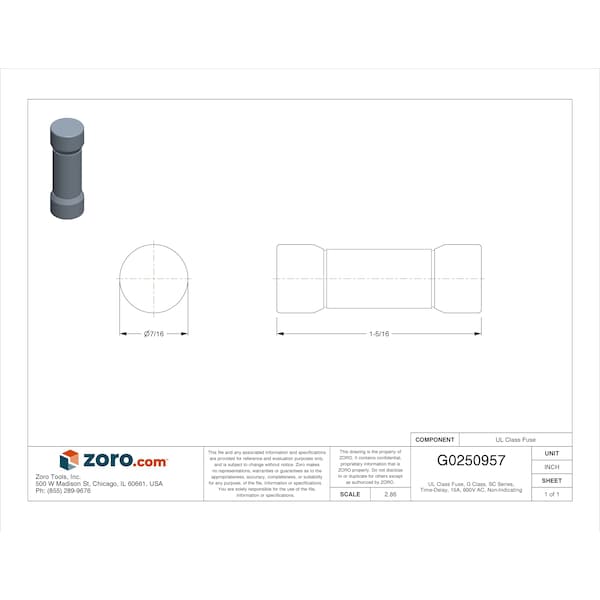

| Length | 1-5/16 in |
| Diameter | 7/16 in |
| Equivalent Brand and Series | Bussmann SC, Littelfuse SLC, Mersen AG |
| Equivalent Series | AG, SC, SLC |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | BG, G, HPS |
| Item | UL Class Fuse |
| Standards | CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ |
| Fuse Holder Code | AG |
| Element | Dual |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Functionally Equal To | Littelfuse SLC, Mersen/Ferraz Shawmut AG |
| Connection Type | Ferrule End x Ferrule End |
| Weight | 0.1 lb |
| Package Quantity | 1 |
