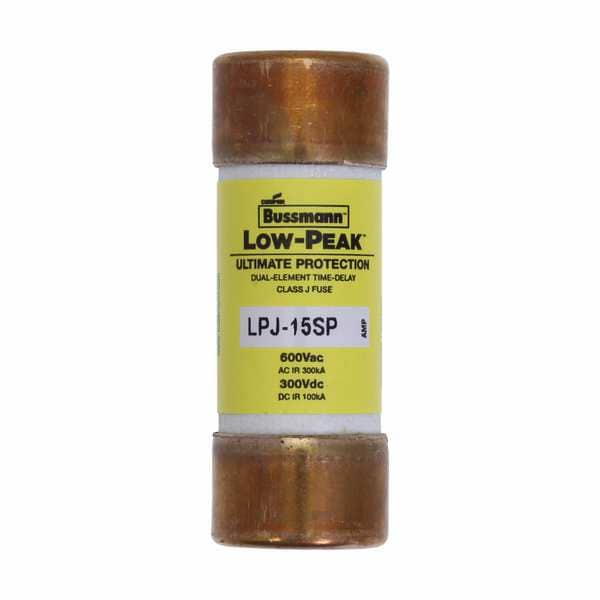

UL Class Fuse, J Class, LPJ Series, Time-Delay, 15A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | J |
| Series | LPJ |
| Speed | Time-Delay |
| Amps | 15A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 300V DC, 300kA at 600V AC |
| Body Style | Cylindrical |
| Body Material | Melamine |

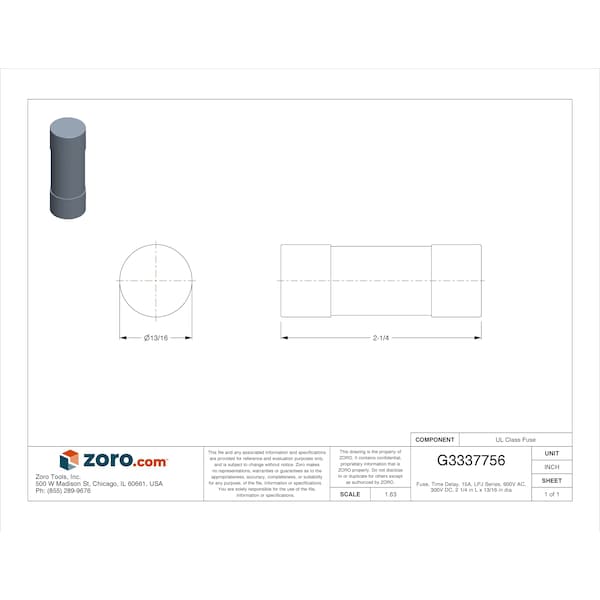

| Length | 2-1/4 in |
| Diameter | 13/16 in |
| Equivalent Brand and Series | Bussmann LPJ, Littelfuse JTD, Mersen AJT |
| Equivalent Series | AJT, JTD, LPJ |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | CH30J, CH60J, J600, JM600, JM601, JM602, JM604, JM606, JP600, JT600, JTN600 |
| Item | UL Class Fuse |
| Standards | CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Holder Code | Z |
| Depth | Not Applicable |
| Element | Dual |
| Functionally Equal To | Littelfuse JTD |
| Connection Type | Ferrule End x Ferrule End |
| Weight | 0.19 lb |
| Products By Industry | Metals |
| Package Quantity | 1 |
