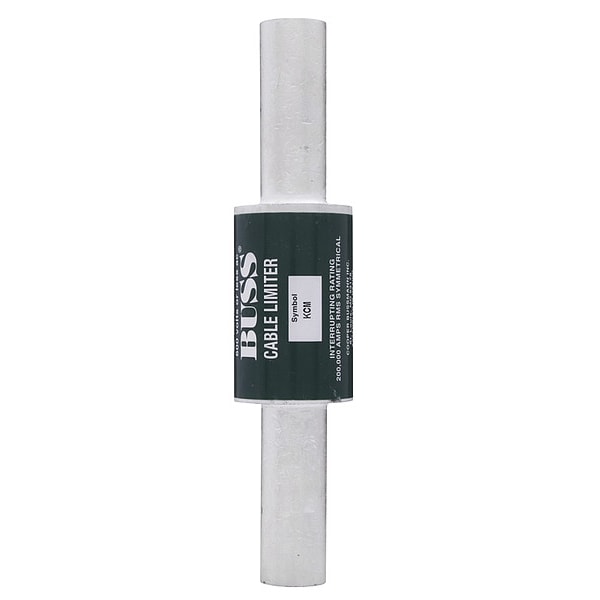

UL Class Fuse, K Class, KCY Series, Fast-Acting, 600V AC, Non-Indicating
| Class | K |
|---|---|
| Series | KCY |
| Speed | Fast-Acting |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Style | Bolt-On |
| Body Material | Melamine |
| Length | 5-3/8 in |
| Diameter | 1-1/16 in |
| Equivalent Brand and Series | Bussmann KCY, Littelfuse LFCL |
| Equivalent Series | KCY, LFCL |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Standards | UL Listed |
| Rejection / Nonrejection | Nonrejection |
| Element | Single |
| Cable Size | 4 AWG |
| Voltage Rating | 600VAC |
| Connector Type | Tube-to-Tube |
| Length (Straight Wireway) | 5-3/8 in |
| Weight | 1.7 lb |
| Package Quantity | 1 |
