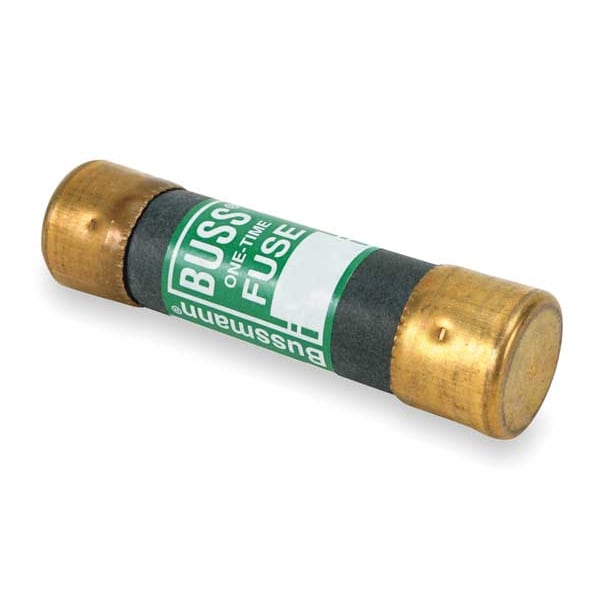

UL Class Fuse, K5 Class, Fast-Acting, 45A, 250V AC, Non-Indicating
| Class | K5 |
|---|---|
| Series | NON |
| Speed | Fast-Acting |
| Amps | 45A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 125V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA at 125V DC, 50kA at 250V AC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 3 in |
| Diameter | 13/16 in |
| Equivalent Brand and Series | Bussmann NON, Littelfuse NLN, Mersen OT |
| Equivalent Series | NLN, NON, OT |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | 2HKRFB, H250, HM250, HM600 |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Standards | CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787 |
| Rejection / Nonrejection | Nonrejection |
| Element | Single |
| Renewable / Nonrenewable | Nonrenewable |
| Renewable | No |
| Length (Straight Wireway) | 3 in |
| Weight | 0.1 lb |
| Package Quantity | 1 |
