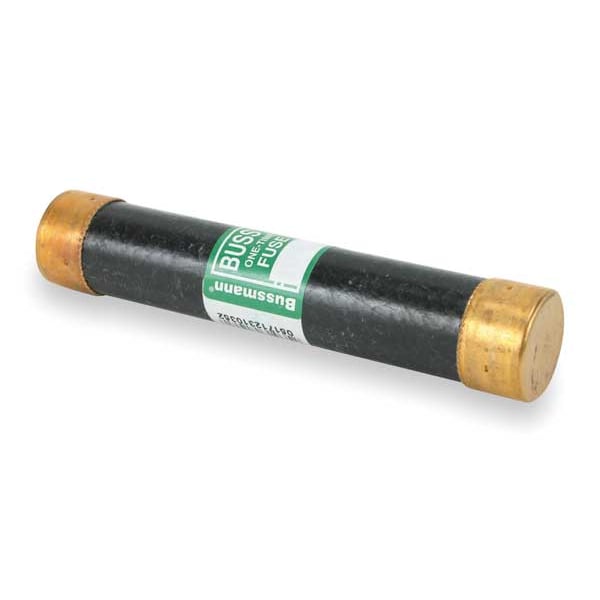

UL Class Fuse, K5 Class, Fast-Acting, 60A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | K5 |
| Series | NOS |
| Speed | Fast-Acting |
| Amps | 60A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA at 600V AC |
| Body Style | Cylindrical |
| Body Material | Melamine |

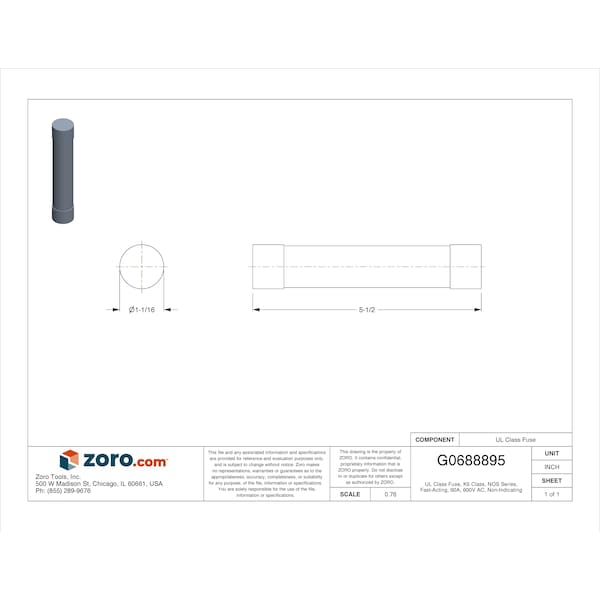

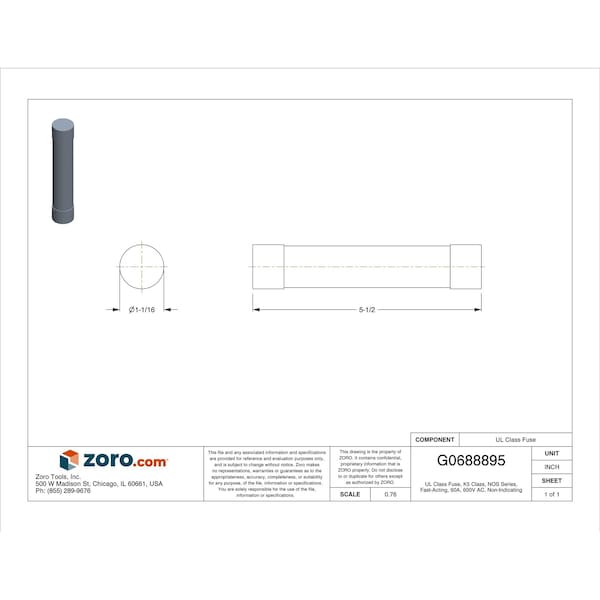

| Length | 5-1/2 in |
| Diameter | 1-1/16 in |
| Equivalent Brand and Series | Bussmann NOS, Littelfuse NLS, Mersen OTS |
| Equivalent Series | NLS, NOS, OTS |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | 6HKRFB, H600, HM600, HM601, HM602, HM604 |
| Item | UL Class Fuse |
| Renewable / Nonrenewable | Nonrenewable |
| Fuse Speed | Fast Acting |
| Element | Single |
| Standards | CE, UL Listed, Guide JDDZ, File E4273, STD 248-9, CSA Certified Class 1421-01, File 53787 |
| Rejection / Nonrejection | Nonrejection |
| Renewable | No |
| Length (Straight Wireway) | 5-1/2 in |
| Weight | 0.25 lb |
| Package Quantity | 1 |
