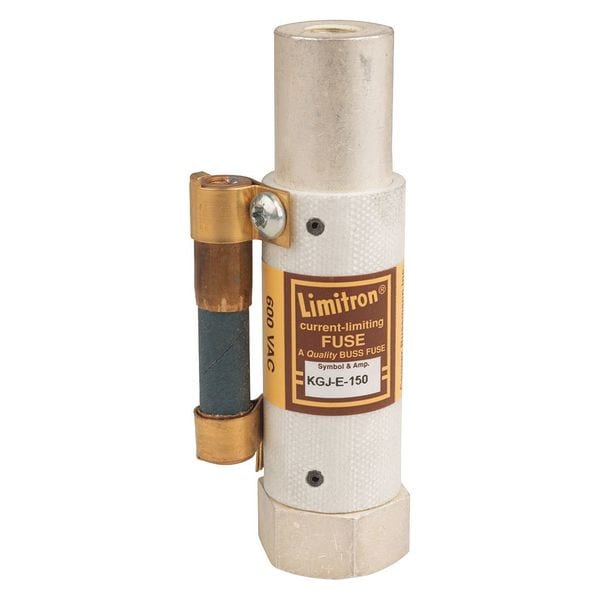

UL Class Fuse, KGJ-E Series, Fast-Acting, 150A, 600V AC, Indicating
| Series | KGJ-E |
|---|---|
| Speed | Fast-Acting |
| Amps | 150A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Visual Indication | Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 3-13/16 in |
| Diameter | 1 in |
| Equivalent Brand and Series | Bussmann KGK-E, Mersen A60C |
| Equivalent Series | A60C, KGJ-E |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Nonrejection |
| Voltage Rating | 600VAC |
| Standards | UL Recognized, Guide JFHR2, File E56412 |
| Thread Size | 1/2-13, 3/8-16 |
| Fuse Speed | Fast Acting |
| Element | Single |
| Mounting Thread Size | 1/2-13, 3/8-16 |
| Mounting Style | Screw |
| Length (Straight Wireway) | 3-13/16 in |
| Weight | 0.51 lb |
| Package Quantity | 1 |
