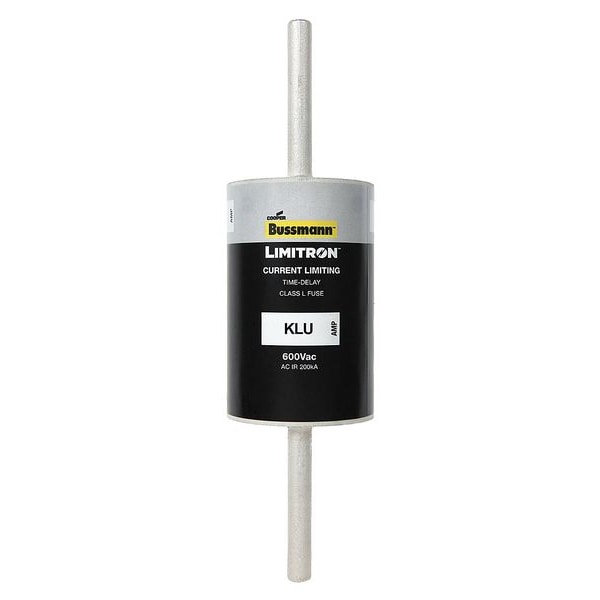

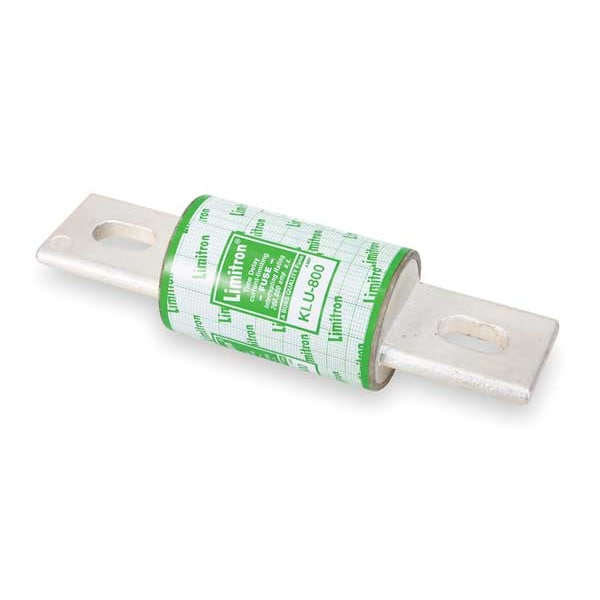

UL Class Fuse, L Class, KLU Series, Time-Delay, 800A, 600V AC, Non-Indicating
| CAD Available |
Yes |
| Class |
L |
| Series |
KLU |
| Speed |
Time-Delay |
| Amps |
800A |
| AC Voltage Rating |
600V AC |
| DC Voltage Rating |
Not Rated |
| Visual Indication |
Non-Indicating |
| Interrupt Rating |
200kA at 600V AC |
| Body Style |
Bolt-On |
| Body Material |
Melamine, Fiberglass |

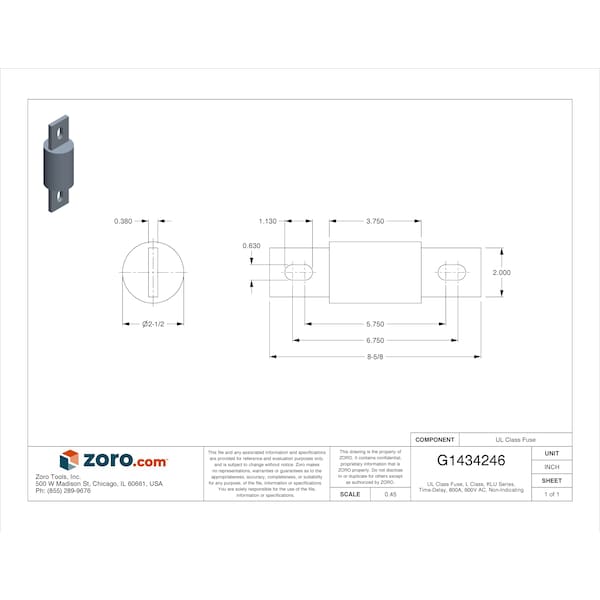

| Length |
8-5/8 in |
| Diameter |
2-1/2 in |
| Equivalent Brand and Series |
Bussmann KLU, Littelfuse KLLU, Littelfuse KLPC, Mersen A4BY |
| Equivalent Series |
A4BY, KLLU, KLPC, KLU |
| Fits Fuse Block Style |
Non-Rejection |
| Item |
UL Class Fuse |
| Standards |
CE/UL-248-10 Guide JDDZ/CSA Class 1422-02 |
| Element |
Dual |
| Green Environmental Attribute |
RoHS 2011/65/EU Compliant |
| Functionally Equal To |
Littelfuse KLLU, KLP, KLPC, Mersen/Ferraz Shawmut A4BQ, A4BT, A4BY |
| Mounting |
Bolt |
| Connection Type |
Blade End x Blade End |
| Weight |
3.75 lb |
| Products By Industry |
Electrical |
| Package Quantity |
1 |
