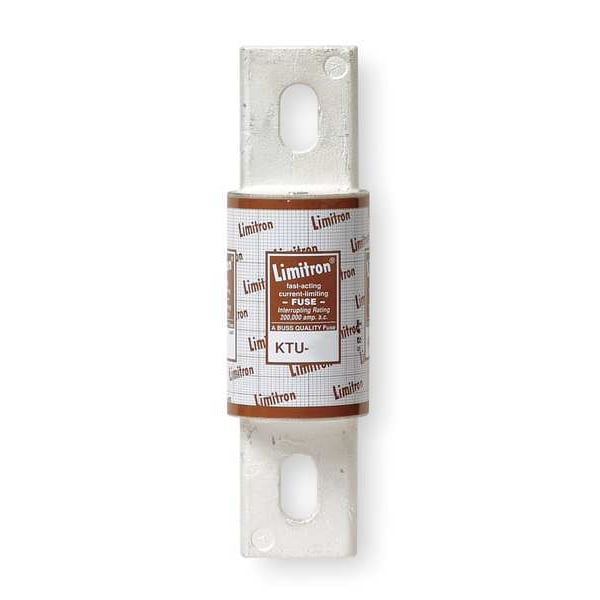

UL Class Fuse, L Class, KTU Series, Fast-Acting, 800A, 600V AC, Non-Indicating
| Class | L |
|---|---|
| Series | KTU |
| Speed | Fast-Acting |
| Amps | 800A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 340V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Style | Bolt-On |
| Body Material | Melamine, Fiberglass |
| Length | 8-5/8 in |
| Diameter | 2-7/16 in |
| Equivalent Brand and Series | Bussmann KTU, Littelfuse KLPC, Mersen A4BY |
| Equivalent Series | A4BY, KLPC, KTU |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Standards | CE/UL-248-10 Guide JDDZ/CSA Class 1422-02 |
| Element | Single |
| Length (Straight Wireway) | 8-5/8 in |
| Weight | 3.75 lb |
| Mounting | Bolt |
| Package Quantity | 1 |
