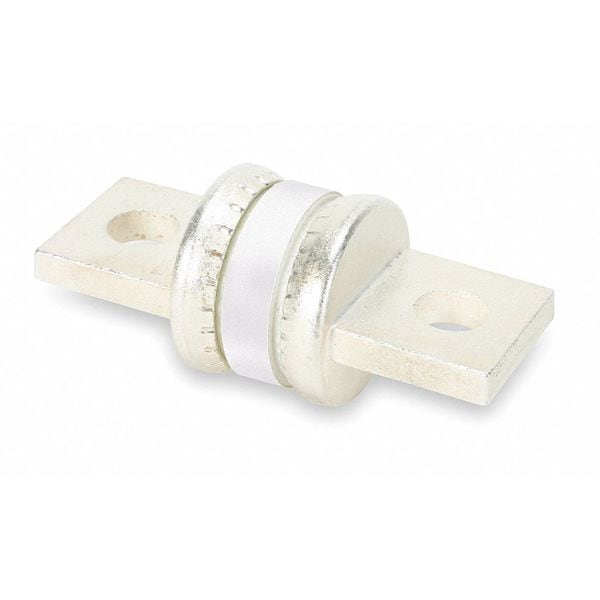

UL Class Fuse, T Class, JJN Series, Fast-Acting, 400A, 300V AC, Non-Indicating
| Class | T |
|---|---|
| Series | JJN |
| Speed | Fast-Acting |
| Amps | 400A |
| AC Voltage Rating | 300V AC |
| DC Voltage Rating | 160V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 300V AC, 20kA at 160V DC |
| Body Style | Bolt-On |
| Body Material | Melamine |
| Length | 2-3/4 in |
| Diameter | 1 in |
| Equivalent Brand and Series | Bussmann JJN, Edison TJN, Littelfuse JLLN, Mersen A3T |
| Equivalent Series | A3T, JJN, JLLN, TJN |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | 1B, 1BS, T300, T301, T302, T306 |
| Item | UL Class Fuse |
| Element | Single |
| Rejection / Nonrejection | Nonrejection |
| Fuse Speed | Fast Acting |
| Fuse Holder Code | BD |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE/UL-248-15 Guide JDDZ/CSA Class 1422-02 |
| Length (Straight Wireway) | 2-3/4 in |
| Weight | 0.25 lb |
| Package Quantity | 1 |
