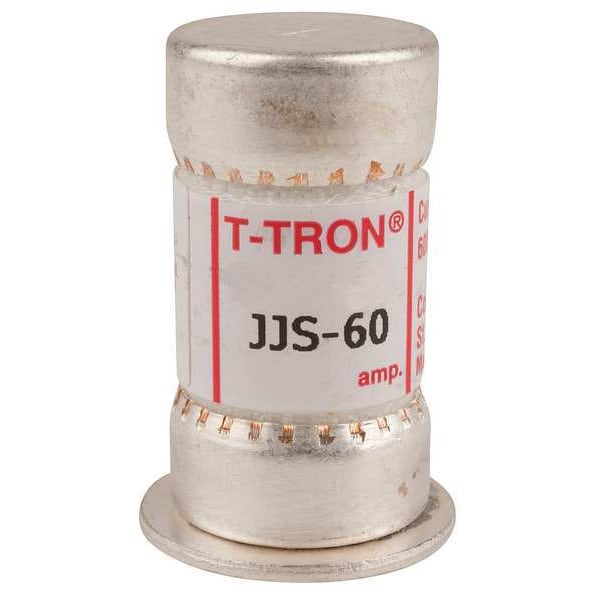

UL Class Fuse, T Class, JJS Series, Fast-Acting, 60A, 600V AC, Non-Indicating
| Class | T |
|---|---|
| Series | JJS |
| Speed | Fast-Acting |
| Amps | 60A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 1-9/16 in |
| Diameter | 13/16 in |
| Equivalent Brand and Series | Bussmann JJS, Littelfuse JLLS, Mersen A6T |
| Equivalent Series | A6T, JJS, JLLS |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | 1BS, T600, T601, T602, T604, T606 |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Nonrejection |
| Fuse Holder Code | BM |
| Fuse Speed | Fast Acting |
| Standards | CE/UL-248-15 Guide JDDZ/CSA Class 1422-02 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Element | Single |
| Length (Straight Wireway) | 1-9/16 in |
| Weight | 0.5 lb |
| Package Quantity | 1 |
