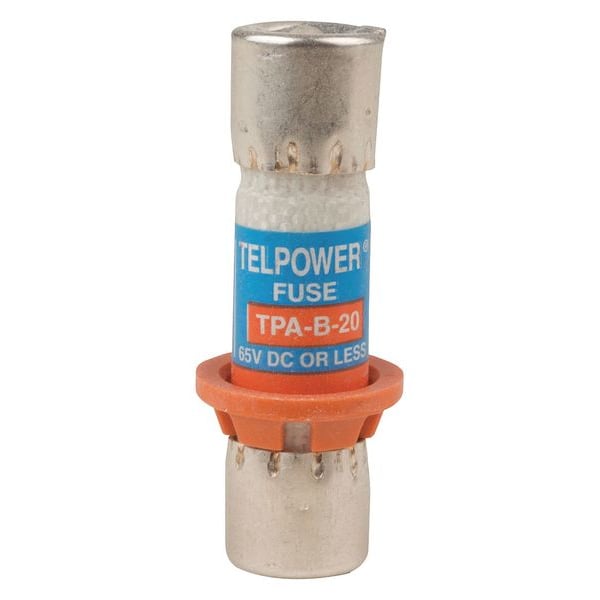

UL Class Fuse, TPA Series, Fast-Acting, 20A, Not Rated, Indicating
| Series | TPA |
|---|---|
| Speed | Fast-Acting |
| Amps | 20A |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 65V DC |
| Visual Indication | Indicating |
| Interrupt Rating | 20kA at 65V DC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 1-1/2 in |
| Diameter | 7/16 in |
| Equivalent Brand and Series | Bussmann TPA |
| Equivalent Series | TPA |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Nonrejection |
| Standards | UL Recognized, Guide JFHR2, File E56412, CSA Certified, Class 1422-30, FILE 53787 |
| Element | Single |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Color Code | No Color Code |
| Fuse Holder Code | Bussmann 5TPH |
| Length (Straight Wireway) | 1-1/2 in |
| Weight | 0.25 lb |
| Package Quantity | 1 |
