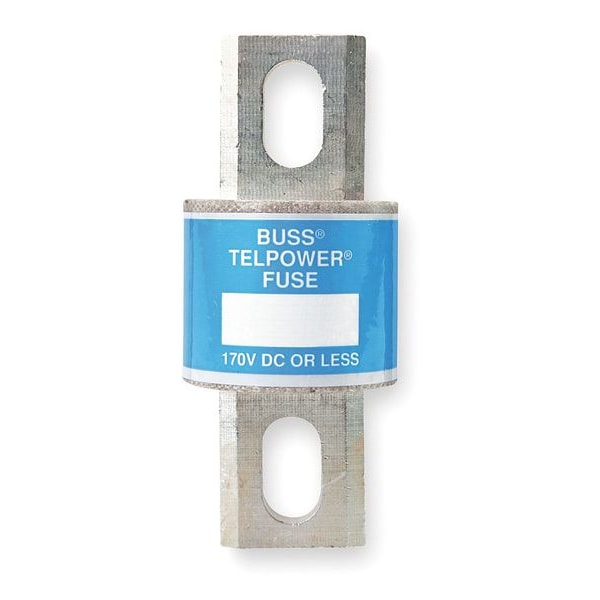

UL Class Fuse, TPL Series, Fast-Acting, 400A, Not Rated, Non-Indicating
| Series | TPL |
|---|---|
| Speed | Fast-Acting |
| Amps | 400A |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 170V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 170V DC |
| Body Style | Bolt-On |
| Body Material | Melamine |
| Length | 3-1/2 in |
| Diameter | 1-1/2 in |
| Equivalent Brand and Series | Bussmann TPL, Littelfuse L17T |
| Equivalent Series | L17T, TPL |
| Fits Fuse Block Style | Non-Rejection |
| Item | UL Class Fuse |
| Fuse Holder Code | Bussmann TPSFH-LC |
| Color Code | No Color Code |
| Standards | CE, UL Recognized, Guide JFHR2, File E56412 Bellcore |
| Rejection / Nonrejection | Nonrejection |
| Fuse Speed | Fast Acting |
| Element | Single |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Length (Straight Wireway) | 3-1/2 in |
| Weight | 1 lb |
| Package Quantity | 1 |
