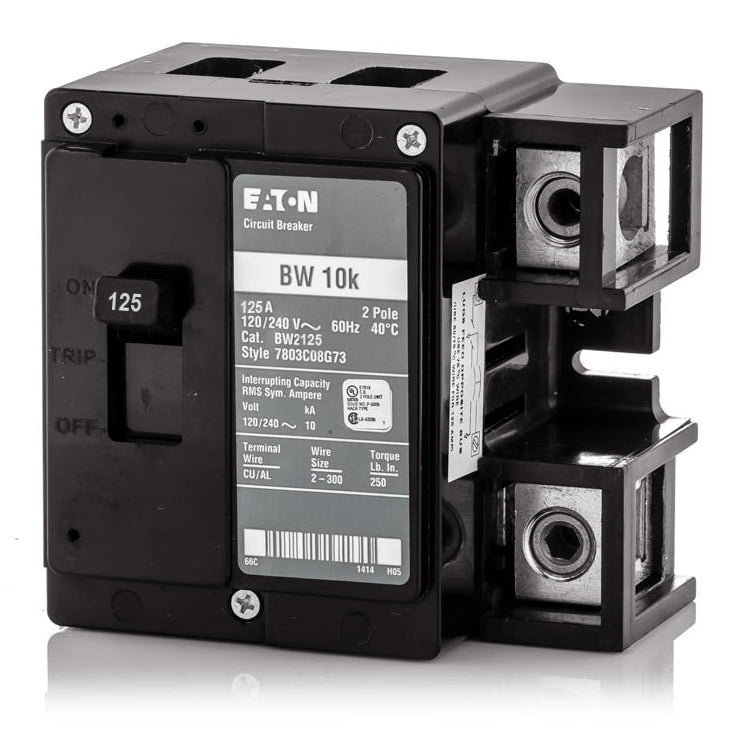

The Eaton BW2125 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The BW2125 has a panel mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | BW |
| Amperage | 125 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | BW |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | 2 AWG to 300KCmil |
| For Use With | Type ECB Unit Enclosures |
| Temperature Rating | 40 °C |
| Mpn | BW2125 |
| Upc | 786676460361 |
