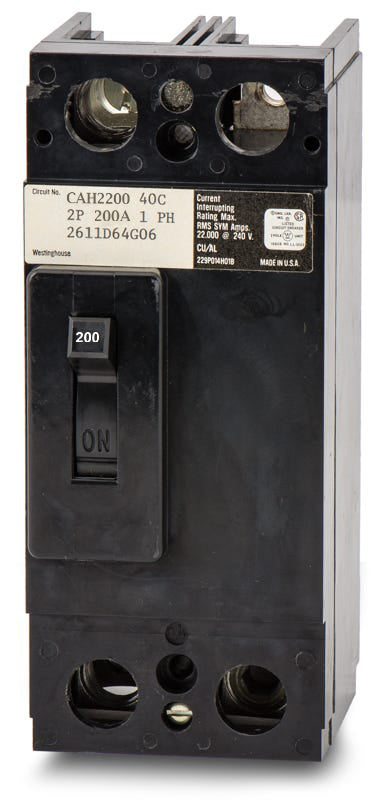

The Eaton CAH2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240V. It has an interrupting rating of 22kAIC at 240V. The CAH2200 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | CAH |
| Amperage | 200A |
| Voltage | 240V |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 22kA@240V |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Mpn | CAH2200 |
| Upc | 786679307922 |
| Gtin | 786679307922 |
