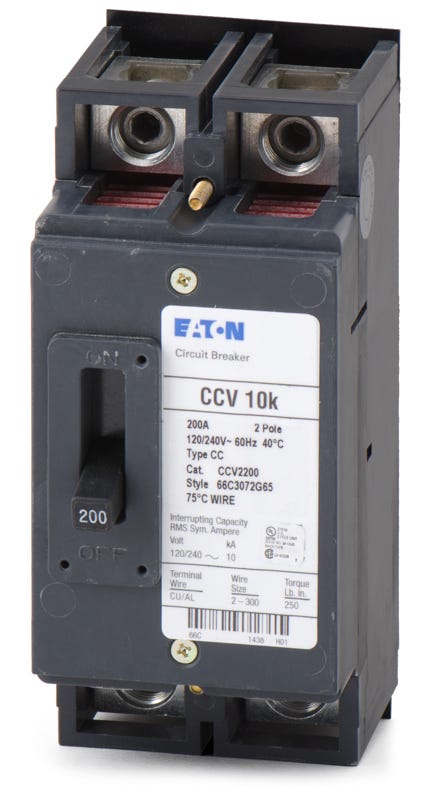

The Eaton CCV2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The CCV2200 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CCV |
| Amperage | 200 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | CCV |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 8 |
| Width (in) | 4.5 |
| Height (in) | 5.5 |
| Wire Gauge | AWG 2/0 to 300KCmil, Cu/Al |
| For Use With | Type ECC Unit Enclosures |
| Mpn | CCV2200 |
| Upc | 786685368573 |
| Gtin | 786685368573 |
