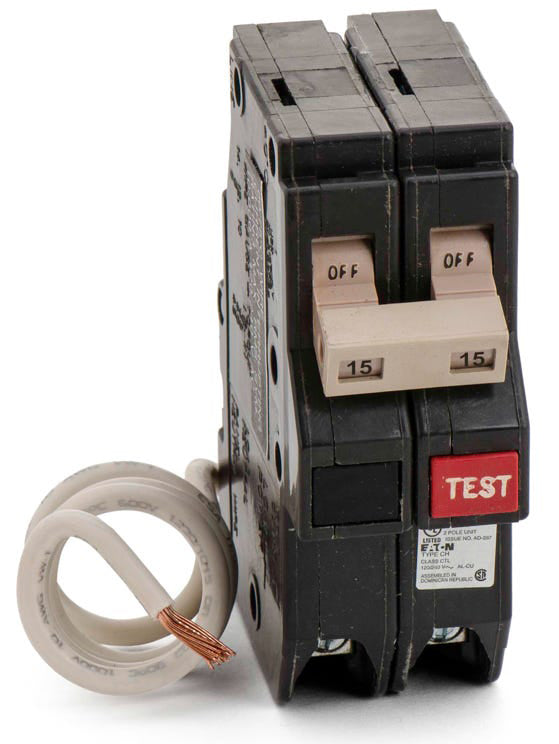

The Eaton CH215GF is a 2 Pole molded case ground fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@240V. The CH215GF has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CH |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 10kAIC@240V |
| Frame Type | CH |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Nema Rating | 3R |
| Wire Gauge | 14 to 6 AWG |
| For Use With | Load Centers |
| Standards | UL |
| Temperature Rating | 60 to 75°C |
| Circuit Breaker Type | GFCI |
| Actuator Type | Handle |
| Mpn | CH215GF |
| Upc | 782113296142 |
