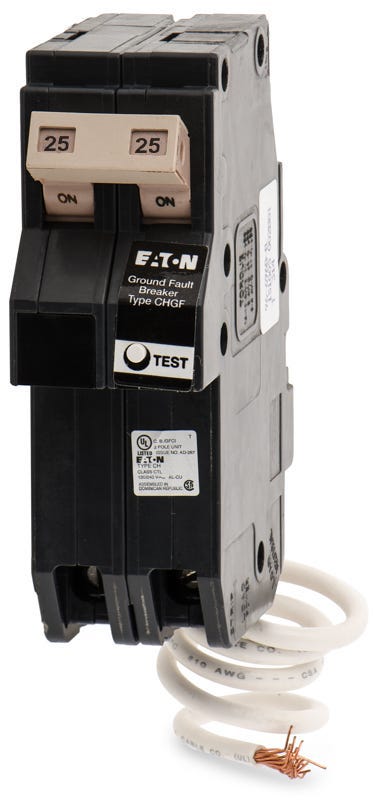

The Eaton CH225GFT is a 2 Pole molded case ground fault circuit breaker with a current rating of 25 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The CH225GFT has a plug-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CH |
| Amperage | 25 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | CH |
| Connection Type | Plug-on |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Nema Rating | 1/3R |
| Wire Gauge | #14 to 4 AWG |
| Temperature Rating | 60 to 75 °C |
| Circuit Breaker Type | GFCI |
| Mpn | CH225GFT |
| Upc | 786676025638 |
